| Yamaha's profilation of this bike |
| Class-exclusive fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing, with an automatic centrifugal clutch that maintains constant belt tension for reduced wear, instant response and class-exclusive Fr/Rr-wheel downhill engine braking. |
| General information |
|---|

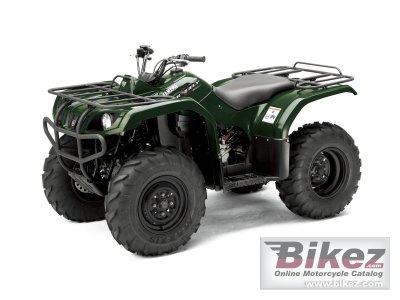

| Model: | Yamaha Bruin 350 | | Year: | 2011 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Price as new (MSRP): | US$ 4199. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 348.00 ccm (21.23 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Compression: | 9.2:1 | | Bore x stroke: | 83.0 x 64.5 mm (3.3 x 2.5 inches) | | Fuel system: | Carburettor. Mikuni 33mm BSR | | Fuel control: | SOHC | | Ignition: | DC - CDI | | Cooling system: | Oil & air | | Gearbox: | Automatic | Transmission type,
final drive: | Shaft drive (cardan) | | Clutch: | Engine Braking | | Driveline: | 2WD; Yamaha Ultramatic® V-Belt / Forward, Neut.,Rev. | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independent Double Wishbone, 6.3” w/ 5-way Preload Adjustment | | Rear suspension: | Swing Arm, 7.1” w/ 5-way Preload Adjustment | | Front tyre dimensions: | 25/8-12 | | Rear tyre dimensions: | 25/10-12 | | Front brakes: | Double disc | | Rear brakes: | Expanding brake (drum brake) | | Physical measures and capacities |
|---|
| Dry weight: | 230.0 kg (507.0 pounds) | | Seat height: | 828 mm (32.6 inches) If adjustable, lowest setting. | | Overall height: | 1,120 mm (44.1 inches) | | Overall length: | 1,984 mm (78.1 inches) | | Overall width: | 1,085 mm (42.7 inches) | | Ground clearance: | 246 mm (9.7 inches) | | Fuel capacity: | 14.38 litres (3.80 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Light: | Dual 30W Krypton Multi-reflector Headlights and 21/5W Brake light | | Factory warranty: | 6 Month (Limited Factory Warranty) | | Color options: | Hunter Green, Steel Blue, Red | | Further information |
|---|
