| General information |
|---|

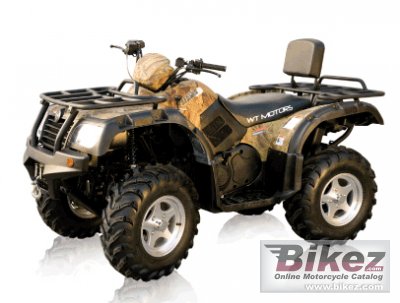

| Model: | WT Motors Alaska WT500 | | Year: | 2011 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 493.00 ccm (30.08 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 19.44 HP (14.2 kW)) @ 6000 RPM | | Torque: | 30.00 Nm (3.1 kgf-m or 22.1 ft.lbs) @ 4500 RPM | | Compression: | 10.2:1 | | Bore x stroke: | 87.5 x 82.0 mm (3.4 x 3.2 inches) | | Fuel system: | Carburettor. Mikuni | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Clutch: | Automtaic centrifugal | | Driveline: | 4WD | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independet A-arm | | Rear suspension: | Independet A-arm | | Front tyre dimensions: | 25/8-12 | | Rear tyre dimensions: | 25/10-12 | | Front brakes: | Double disc | | Rear brakes: | Single disc | | Physical measures and capacities |
|---|
| Dry weight: | 335.0 kg (738.5 pounds) | | Power/weight ratio: | 0.0580 HP/kg | | Overall height: | 1,230 mm (48.4 inches) | | Overall length: | 2,185 mm (86.0 inches) | | Overall width: | 1,170 mm (46.1 inches) | | Wheelbase: | 1,290 mm (50.8 inches) | | Fuel capacity: | 19.00 litres (5.02 gallons) | | Oil capacity: | 2.00 litres (0.13 quarts) | | Other specifications |
|---|
| Starter: | Electric & kick | | Light: | Dual front lights | | Electrical: | 12 Volt 10 Ah battery | | Color options: | Camouflage | | Comments: | A version with 200 mm extended seat height is available. Weight is 338 kg. The versions are called Passo Corto and Passo Lungo. Sold in Italy. | | Further information |
|---|
