| General information |
|---|

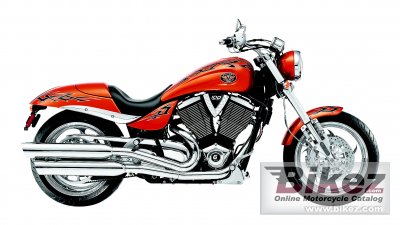

| Model: | Victory Victory Hammer |
| Year: | 2006 |
| Category: | Custom / cruiser |
| Rating: | 74.9 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1638.81 ccm (100.00 cubic inches) |
| Engine type: | V2, four-stroke |
| Compression: | 9.8:1 |
| Bore x stroke: | 101.0 x 102.0 mm (4.0 x 4.0 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Electronic Fuel Injection with 44mm throttle bodies |
| Fuel control: | SOHC |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Wet, multi-plate |
| Exhaust system: | Staggered slash-cut dual exhaust with common volume |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 32.9° |
| Front suspension: | Inverted cartridge telescopic fork, 43mm fork tube, 5.1in/130mm travel |
| Rear suspension: | Single, mono-tube gas, forged and cast aluminum with rising rate linkage swing-arm, 3.9in/100mm travel, preload adjustable spring |
| Front tyre dimensions: | 130/70-R18 |
| Rear tyre dimensions: | 250/40-18 |
| Front brakes: | Double disc |
| Front brakes diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 300 mm (11.8 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 298.0 kg (657.0 pounds) |
| Seat height: | 671 mm (26.4 inches) If adjustable, lowest setting. |
| Overall length: | 2,355 mm (92.7 inches) |
| Ground clearance: | 147 mm (5.8 inches) |
| Wheelbase: | 1,669 mm (65.7 inches) |
| Fuel capacity: | 17.03 litres (4.50 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Black, Indy Red, Supersonic Blue |
