13 Triumph Trophy specificationsTriumph Trophy 2013

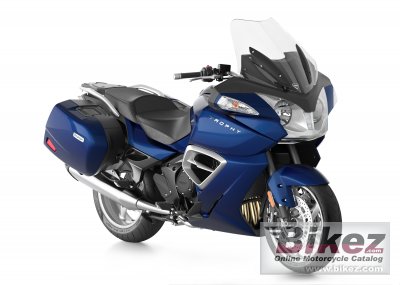

2013 Triumph Trophy photo
Picture credits - Triumph. Click to submit more pictures.
   Show big 2013 Triumph Trophy imageShow more 2013 Triumph Trophy images
2013 Triumph Trophy

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Triumph's profilation of this bike
Designed with obsessive attention to detail, the 1215cc 3-cylinder shaft drive Trophy gives you the torque, performance and handling for a sublime riding experience.

General information
Model:Triumph Trophy
Year:2013
Category:Touring
Rating:Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:1215.00 ccm (74.14 cubic inches)
Engine type:In-line three, four-stroke
Power:134.00 HP (97.8 kW)) @ 8900 RPM
Torque:120.00 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 6450 RPM
Bore x stroke:85.0 x 71.4 mm (3.3 x 2.8 inches)
Fuel system:Injection. Ride by wire. fuel injection
Fuel control:DOHC
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Shaft drive (cardan)
Clutch:Wet. multi-plate
Exhaust system:Stainless steel 3 into 1. side mounted stainless steel silencer
Chassis, suspension, brakes and wheels
Frame type:Aluminium beam twin-spar
Rake (fork angle):27.0
Trail:119 mm (4.7 inches)
Front suspension:WP 43mm upside down forks, electronically adjustable rebound damping (sport/normal/comfort) with 127mm travel.
Rear suspension:WP monoshock with integral oil reservoir, electronically adjustable hydraulic preload (1up, 1up+luggage, 2up), electronically adjustable rebound damping (sport, normal, comfort), 120mm rear wheel travel.
Front tyre dimensions:120/70-17
Rear tyre dimensions:190/55-17
Front brakes:Double disc. Floating discs, Nissin 4-piston calipers, ABS (non-switchable)
Front brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc. Nissin 2-piston sliding caliper, ABS (non-switchable)
Rear brakes diameter:282 mm (11.1 inches)
Wheels:Cast aluminium 5-spoke
Physical measures and capacities
Weight incl. oil, gas, etc:301.0 kg (663.6 pounds)
Seat height:770 mm (30.3 inches) If adjustable, lowest setting.
Overall height:1,435 mm (56.5 inches)
Overall length:2,235 mm (88.0 inches)
Overall width:975 mm (38.4 inches)
Wheelbase:1,542 mm (60.7 inches)
Fuel capacity:26.00 litres (6.87 gallons)
Oil capacity:4.00 litres (0.26 quarts)
Other specifications
Starter:Electric
Instruments:Dual analogue gauges and trip computers, range to empty indication, service indicator, gear position indication, air temperature, frost warning
Carrying capacity:Saddle bags
Factory warranty:2 year warranty unlimited mileage
Color options:Silver, blue
Comments:Linked brakes - front brakes partially activated by rear.
