| Triumph's profilation of this bike |
| The new Tiger Explorer XC is ready for your next adventure. The XC isn’t just designed to get you noticed. It’s designed to go the distance on road or off the beaten track. That’s because it has the Explorer’s incredible dynamic handling, plus all the kit you need to keep going when things get challenging, including new aluminium rimmed, steel spoked wheels with tubeless tyres, hand guards, engine bars and fog lights. |
| General information |
|---|

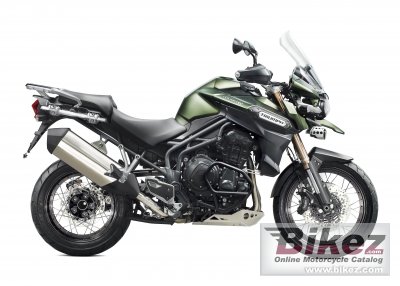

| Model: | Triumph Tiger Explorer XC | | Year: | 2013 | | Category: | Allround | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 1215.00 ccm (74.14 cubic inches) | | Engine type: | In-line three, four-stroke | | Power: | 137.00 HP (100.0 kW)) @ 9300 RPM | | Torque: | 121.00 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 6400 RPM | | Bore x stroke: | 85.0 x 71.4 mm (3.3 x 2.8 inches) | | Valves per cylinder: | 4 | | Fuel system: | Injection. Drive by wire. fuel injection | | Fuel control: | DOHC | | Cooling system: | Liquid | | Gearbox: | 6-speed | Transmission type,
final drive: | Shaft drive (cardan) | | Clutch: | Wet. multi-plate | | Fuel consumption: | 4.90 litres/100 km (20.4 km/l or 48.00 mpg) | | Greenhouse gases: | 113.7 CO2 g/km. (CO2 - Carbon dioxide emission) | | Exhaust system: | Stainless steel 3 into 1 . side mounted stainless steel silencer | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular steel trellis frame | | Rake (fork angle): | 23.9° | | Trail: | 91 mm (3.6 inches) | | Front suspension: | KYB 46mm upside down forks, 190mm travel | | Rear suspension: | KYB monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment, 194mm rear wheel travel | | Front tyre dimensions: | 110/80-19 | | Rear tyre dimensions: | 150/70-17 | | Front brakes: | Double disc. Floating discs, Nissin 4-piston calipers, Switchable ABS | | Rear brakes: | Single disc. Nissin 2-piston sliding caliper, Switchable ABS | | Wheels: | Spoked, aluminium rims | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 259.0 kg (571.0 pounds) | | Seat height: | 837 mm (33.0 inches) If adjustable, lowest setting. | | Overall height: | 1,410 mm (55.5 inches) | | Overall length: | 2,248 mm (88.5 inches) | | Overall width: | 885 mm (34.8 inches) | | Wheelbase: | 1,435 mm (56.5 inches) | | Fuel capacity: | 20.00 litres (5.28 gallons) | | Oil capacity: | 4.00 litres (0.26 quarts) | | Other specifications |
|---|
| Starter: | Electric | | Instruments: | LCD instrument pack with digital speedometer, analogue tachometer, gear position indicator, fuel gauge, range to empty, service indicator, clock, air temperature, frost warning, hazard warning lights, trip computer, Tyre pressure monitoring system | | Color options: | Green | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 13 Triumph Tiger Explorer XC discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
