12 Triumph Tiger Explorer specificationsTriumph Tiger Explorer 2012

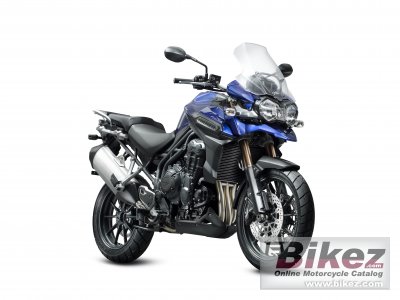

2012 Triumph Tiger Explorer photo
Picture credits - Triumph. Click to submit more pictures.
   Show big 2012 Triumph Tiger Explorer imageShow more 2012 Triumph Tiger Explorer images
2012 Triumph Tiger Explorer

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Triumph's profilation of this bike
The ultimate choice for the long haul adventurer. Class-leading handling. The journey doesn’t have to end when the Tarmac does. Brand new, 1215cc engine, with shaft drive of course. A Triumph to take on the world.

General information
Model:Triumph Tiger Explorer
Year:2012
Category:Allround
Rating:76 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:1215.00 ccm (74.14 cubic inches)
Engine type:In-line three, four-stroke
Power:137.00 HP (100.0 kW)) @ 9400 RPM
Torque:121.00 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 6400 RPM
Compression:12.0:1
Bore x stroke:85.0 x 85.0 mm (3.3 x 3.3 inches)
Valves per cylinder:4
Fuel system:Injection. Drive by wire. fuel injection
Fuel control:DOHC
Ignition:Digital-inductive type via engine management system
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Shaft drive (cardan)
Clutch:Wet. multi-plate
Exhaust system:Stainless steel 3 into 1 . side mounted stainless steel silencer
Chassis, suspension, brakes and wheels
Frame type:Tubular steel trellis frame
Rake (fork angle):23.9°
Front suspension:Kayaba 46mm upside down forks, 190mm travel
Rear suspension:Kayaba monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment, 194mm rear wheel travel
Front tyre dimensions:110/80-19
Rear tyre dimensions:150/70-17
Front brakes:Double disc. Switchable ABS
Front brakes diameter:305 mm (12.0 inches)
Rear brakes:Single disc. Switchable ABS
Rear brakes diameter:282 mm (11.1 inches)
Wheels:Cast aluminium alloy 10-spoke
Physical measures and capacities
Weight incl. oil, gas, etc:259.0 kg (571.0 pounds)
Seat height:837 mm (33.0 inches) If adjustable, lowest setting.
Overall height:1,410 mm (55.5 inches)
Overall length:2,248 mm (88.5 inches)
Overall width:962 mm (37.9 inches)
Wheelbase:1,530 mm (60.2 inches)
Fuel capacity:20.00 litres (5.28 gallons)
Oil capacity:4.00 litres (0.26 quarts)
Other specifications
Starter:Electric
Instruments:LCD instrument pack with digital speedometer, analogue tachometer, gear position indicator, fuel gauge, range to empty, service indicator, clock, air temperature, frost warning, hazard warning lights, trip computer, Tyre pressure monitoring system
Color options:Phantom Black. Crystal White
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 12 Triumph Tiger Explorer discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Free motorcycle classifieds

Click here to sell a used 2012 Triumph Tiger Explorer or advertise any other MC for sale. You can list all available Triumph Tiger Explorer bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world.

You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc.


Rating sample for this Triumph bike
Offroad capabilities for the 2012 Triumph Tiger Explorer:


(69.9 out of 100)

Click here for complete rating. You can also compare bikes.
