| General information |
|---|

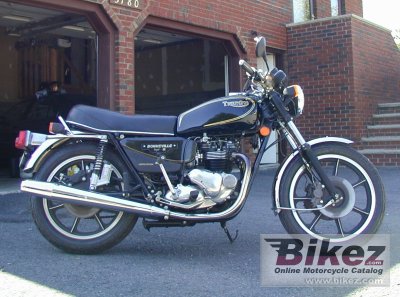

| Model: | Triumph T140 ES Bonneville Royal Limited Edition |
| Year: | 1981 |
| Category: | Classic |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | US$ 4200. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 750.00 ccm (45.77 cubic inches) |
| Engine type: | Twin, four-stroke |
| Top speed: | 180.0 km/h (111.8 mph) |
| 1/4 mile (0.4 km): | 13.700 seconds |
| Max RPM: | 7200 |
| Compression: | 7.9:1 |
| Bore x stroke: | 76.0 x 82.0 mm (3.0 x 3.2 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Carburettor. Twin Bing 32mm CV Type 94 |
| Fuel control: | OHV |
| Ignition: | Lucas Electronic |
| Lubrication system: | Dry Sump |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet multi-plate |
| Fuel consumption: | 5.22 litres/100 km (19.2 km/l or 45.06 mpg) |
| Greenhouse gases: | 121.1 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system: | Twin downswept with balance pipe, Dual silencers. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Twin Downtube Cradle. Oil in frame. |
| Rake (fork angle): | 27.0° |
| Trail: | 113 mm (4.4 inches) |
| Front suspension: | Telescopic slider type |
| Front suspension travel: | 170 mm (6.7 inches) |
| Rear suspension: | Twin Mazzochi Air-Assisted Shocks |
| Rear suspension travel: | 89 mm (3.5 inches) |
| Front tyre dimensions: | 4.10H-19 |
| Rear tyre dimensions: | 410H-18 |
| Front brakes: | Single disc. Dual piston caliper. Hard chromed cast iron disk |
| Front brakes diameter: | 254 mm (10.0 inches) |
| Rear brakes: | Single disc. Dual piston caliper. Hard chromed cast iron disk |
| Rear brakes diameter: | 254 mm (10.0 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 179.2 kg (395.0 pounds) |
| Weight incl. oil, gas, etc: | 199.6 kg (440.0 pounds) |
| Seat height: | 787 mm (31.0 inches) If adjustable, lowest setting. |
| Overall length: | 2,223 mm (87.5 inches) |
| Overall width: | 838 mm (33.0 inches) |
| Wheelbase: | 1,422 mm (56.0 inches) |
| Fuel capacity: | 18.00 litres (4.76 gallons) |
| Oil capacity: | 2.20 litres (0.15 quarts) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Chromed Fuel Tank with air-brushed metalic blue styling strips and Side Covers |
| Comments: | King/Queen seat with grey vinyl seat inserts. |
| Modifications compared to previous model: | Differs from standard Bonneville in that the Fuel Tank is chromed and many extra alloy parts were polished. Custom paint airbrushed. The King/Queen seat set it apart from the standard Bonneville as well. |
