13 Triumph Speedmaster specificationsTriumph Speedmaster 2013

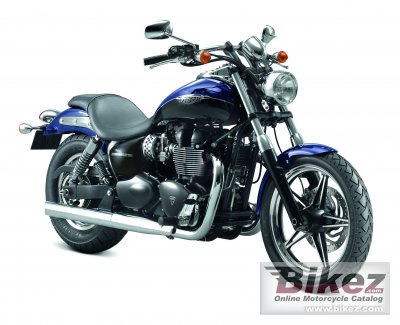

2013 Triumph Speedmaster photo
Picture credits - Triumph. Click to submit more pictures.
   Show big 2013 Triumph Speedmaster imageShow more 2013 Triumph Speedmaster images
2013 Triumph Speedmaster

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Triumph's profilation of this bike
Bad boy good looks. Slash cut pipes. Engine cases in black for real attitude. Black cast wheels with machined detail. The Speedmaster. Air-cooled 865cc parallel-twin, 270 degree crank engine. Unique ´hot rod´ style. The very essence of low-slung, old-school cruiser re-invented for the demands of today´s rider. Short guards, big wheels and a totally new feel.

General information
Model:Triumph Speedmaster
Year:2013
Category:Custom / cruiser
Rating:64.3 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 8299. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:865.00 ccm (52.78 cubic inches)
Engine type:In-line three, four-stroke
Engine details:270º firing interval
Power:61.00 HP (44.5 kW)) @ 6800 RPM
Torque:72.00 Nm (7.3 kgf-m or 53.1 ft.lbs) @ 3300 RPM
Compression:9.2:1
Bore x stroke:90.0 x 90.0 mm (3.5 x 3.5 inches)
Fuel system:Injection. Multipoint sequential electronic fuel injection with SAI
Fuel control:DOHC
Ignition:Digital-inductive type via engine management system
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Chain
Clutch:Wet. multi-plate
Driveline:X ring chain
Fuel consumption:4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Greenhouse gases:113.7 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system:Stainless steel twin-walled headers. twin chromed exhaust
Chassis, suspension, brakes and wheels
Frame type:Tubular steel cradle. Twin-sided, tubular steel swingarm.
Rake (fork angle):33.8°
Trail:170 mm (6.7 inches)
Front suspension:KYB 41mm forks with polished lowers. 120mm travel
Rear suspension:KYB chromed spring twin shocks with adjustable preload. 96mm rear wheel travel
Front tyre dimensions:100/90-R19
Rear tyre dimensions:170/80-B15
Front brakes:Double disc. Nissin 2-piston floating calipers
Front brakes diameter:310 mm (12.2 inches)
Rear brakes:Single disc. Nissin 2-piston floating calipers
Rear brakes diameter:285 mm (11.2 inches)
Wheels:Cast aluminum alloy 5-spoke
Physical measures and capacities
Weight incl. oil, gas, etc:250.0 kg (551.2 pounds)
Seat height:690 mm (27.2 inches) If adjustable, lowest setting.
Overall height:1,133 mm (44.6 inches)
Overall length:2,367 mm (93.2 inches)
Overall width:825 mm (32.5 inches)
Wheelbase:1,606 mm (63.2 inches)
Fuel capacity:19.30 litres (5.10 gallons)
Oil capacity:4.50 litres (0.30 quarts)
Other specifications
Starter:Electric
Instruments:Analogue speedometer and tachometer with odometer and trip information
Factory warranty:2 year warranty unlimited mileage
Color options:Blue/black, Matt black
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 13 Triumph Speedmaster discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Rate motorcycles you know

Rate motorcycles you know and help your fellow riders to find the bike that is right for them. Bikez has the most users and the most extensive motorcycle rating on the net. It includes reliability, design, engine performance, accident risk, repair cost, offroad capabilities, racing track capabilities and touring capabilities.

The ratings are also used to rank the 100 most popular MC models each year since 1990. The lists are adjusted weekly as new ratings are added. You can check out the rating of the 2013 Triumph Speedmaster and compare it to other bikes here.


Rating sample for this Triumph bike
Reliability for the 2013 Triumph Speedmaster:


(65.3 out of 100)

Click here for complete rating. You can also compare bikes.
