09 Triumph Speedmaster specificationsTriumph Speedmaster 2009

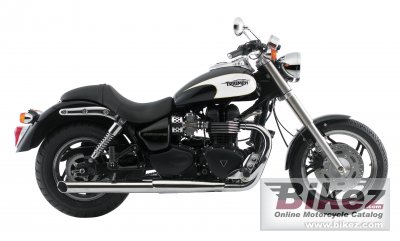

2009 Triumph Speedmaster photo
Picture credits - Triumph. Click to submit more pictures.
   Show big 2009 Triumph Speedmaster imageShow more 2009 Triumph Speedmaster images
2009 Triumph Speedmaster

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Triumph's profilation of this bike
The Speedmaster makes its inspiration and intentions clear from the start. We took that laid back custom look and added a real big helping of attitude.

General information
Model:Triumph Speedmaster
Year:2009
Category:Custom / cruiser
Rating:72.9 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:865.00 ccm (52.78 cubic inches)
Engine type:Twin, four-stroke
Power:61.68 HP (45.0 kW)) @ 6800 RPM
Torque:74.00 Nm (7.5 kgf-m or 54.6 ft.lbs) @ 3300 RPM
Compression:9.2:1
Bore x stroke:90.0 x 68.0 mm (3.5 x 2.7 inches)
Fuel system:Injection. Multipoint sequential electonic fuel injection
Fuel control:DOHC
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Chain
Clutch:Wet. multi-plate
Chassis, suspension, brakes and wheels
Frame type:Tubular steel cradle
Rake (fork angle):33.3
Trail:153 mm (6.0 inches)
Front suspension:41mm forks. 130mm travel
Rear suspension:Chromed spring twin shocks with adjustable preload. 96mm rear wheel travel
Front tyre dimensions:110/80-18
Rear tyre dimensions:170/80-15
Front brakes:Double disc
Front brakes diameter:310 mm (12.2 inches)
Rear brakes:Single disc
Rear brakes diameter:285 mm (11.2 inches)
Physical measures and capacities
Dry weight:229.0 kg (504.9 pounds)
Power/weight ratio:0.2693 HP/kg
Seat height:720 mm (28.3 inches) If adjustable, lowest setting.
Overall height:1,160 mm (45.7 inches)
Overall length:2,420 mm (95.3 inches)
Overall width:830 mm (32.7 inches)
Wheelbase:1,655 mm (65.2 inches)
Fuel capacity:19.30 litres (5.10 gallons)
Other specifications
Starter:Electric
Color options:Phantom Black/New England White, Phantom Black
