| Triumph's profilation of this bike |
| Dark, brooding lines and a stripped-down hot-rod essence make the Speedmaster a standout middleweight cruiser. |
| General information |
|---|

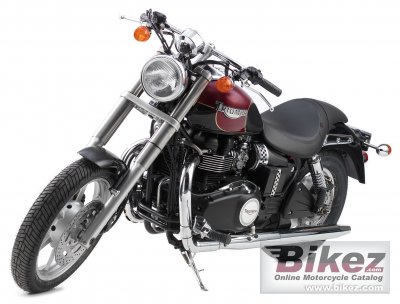

| Model: | Triumph Speedmaster |
| Year: | 2006 |
| Category: | Custom / cruiser |
| Rating: | 68.5 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 865.00 ccm (52.78 cubic inches) |
| Engine type: | Twin, four-stroke |
| Power: | 55.00 HP (40.1 kW)) @ 6750 RPM |
| Torque: | 69.00 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 4800 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 90.0 x 68.0 mm (3.5 x 2.7 inches) |
| Fuel system: | Carburettor |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | Digital - inductive type |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet. multi-plate |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular steel cradle |
| Rake (fork angle): | 33.3° |
| Front suspension: | 41mm forks |
| Rear suspension: | Chromed spring twin shocks with adjustable preload |
| Front tyre: | 110/80-18 |
| Rear tyre: | 170/80-R15 |
| Front brakes: | Double disc |
| Front brakes diameter: | 310 mm (12.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 285 mm (11.2 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 229.0 kg (504.9 pounds) |
| Power/weight ratio: | 0.2402 HP/kg |
| Seat height: | 720 mm (28.3 inches) If adjustable, lowest setting. |
| Overall height: | 1,160 mm (45.7 inches) |
| Overall length: | 2,420 mm (95.3 inches) |
| Overall width: | 830 mm (32.7 inches) |
| Wheelbase: | 1,655 mm (65.2 inches) |
| Fuel capacity: | 16.60 litres (4.39 gallons) |
| Other specifications |
|---|
| Color options: | Jet Black. Jet Black/Sunset Red. Jet Black/Neon Blue |
| Starter: | Electric |
