| Triumph's profilation of this bike |
| The Speed triple is tougher than ever and determined to defend its rightful position as the definitive factory streetfighter.
|
| General information |
|---|

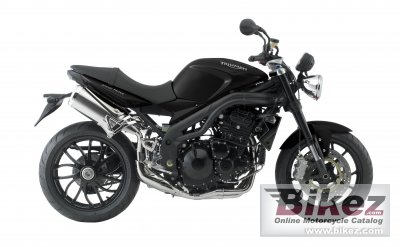

| Model: | Triumph Speed Triple |
| Year: | 2009 |
| Category: | Naked bike |
| Rating: | 79.4 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1050.00 ccm (64.07 cubic inches) |
| Engine type: | In-line three, four-stroke |
| Power: | 130.07 HP (94.9 kW)) @ 9250 RPM |
| Torque: | 105.00 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 7550 RPM |
| Compression: | 12.0:1 |
| Bore x stroke: | 79.0 x 71.4 mm (3.1 x 2.8 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Multipoint sequential electronic fuel injection |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet. multi-plate |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Aluminium beam twin spar |
| Rake (fork angle): | 23.5° |
| Front suspension: | Showa 43mm upside down forks with dual rate springs and adjustable preload. rebound and compression damping. 120mm travel |
| Rear suspension: | Showa Monoshock with adjustable preload and rebound and compression damping. 134mm travel |
| Front tyre: | 120/70-ZR17 |
| Rear tyre: | 180/55-ZR17 |
| Front brakes: | Double disc |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 189.0 kg (416.7 pounds) |
| Power/weight ratio: | 0.6882 HP/kg |
| Seat height: | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Overall height: | 1,250 mm (49.2 inches) |
| Overall length: | 2,115 mm (83.3 inches) |
| Overall width: | 780 mm (30.7 inches) |
| Wheelbase: | 1,429 mm (56.3 inches) |
| Fuel capacity: | 18.00 litres (4.76 gallons) |
| Other specifications |
|---|
| Color options: | Blazing Orange. Jet Black. Fusion White. Matt Black |
| Further information |
|---|
