| General information |
|---|

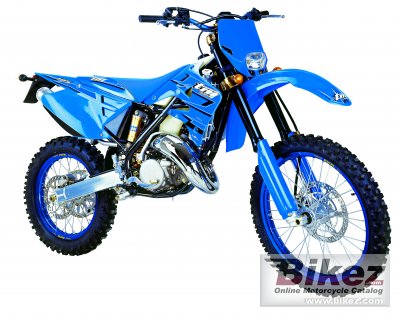

| Model: | TM Racing EN 125 |
| Year: | 2007 |
| Category: | Enduro / offroad |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 123.50 ccm (7.54 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Compression: | 1.0:1 |
| Bore x stroke: | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Fuel system: | Carburettor. Keihin PWK 38 |
| Ignition: | Kokusan CDI Electronic with variable advance |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
| Clutch: | Multiuple-disk in oil-bath with hydaulic control |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Cr-Mo steel Perimetral oval section |
| Front tyre dimensions: | 90/90-21 |
| Rear tyre dimensions: | 120/90-18 |
| Front brakes: | Single disc |
| Front brakes diameter: | 270 mm (10.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 245 mm (9.6 inches) |
| Physical measures and capacities |
|---|
| Fuel capacity: | 8.00 litres (2.11 gallons) |
| Other specifications |
|---|
