| General information |
|---|

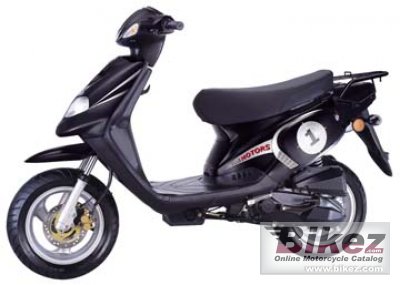

| Model: | TGB 101R (150cc) | | Year: | 2007 | | Category: | Scooter | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 8.60 HP (6.3 kW)) @ 7500 RPM | | Compression: | 9.2:1 | | Bore x stroke: | 52.4 x 57.8 mm (2.1 x 2.3 inches) | | Ignition: | C.D.I | | Lubrication system: | Oil Pump Separate | | Cooling system: | Air | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Clutch: | C.V.T | | Chassis, suspension, brakes and wheels |
|---|
| Front tyre dimensions: | 120/70-12 | | Rear tyre dimensions: | 120/70-12 | | Front brakes: | Single disc | | Rear brakes: | Expanding brake (drum brake) | | Physical measures and capacities |
|---|
| Dry weight: | 84.0 kg (185.2 pounds) | | Power/weight ratio: | 0.1024 HP/kg | | Overall height: | 1,140 mm (44.9 inches) | | Overall length: | 1,770 mm (69.7 inches) | | Overall width: | 680 mm (26.8 inches) | | Fuel capacity: | 5.10 litres (1.35 gallons) | | Other specifications |
|---|
| Starter: | Electric & kick | | Color options: | Red, Black, Blue | | Further information |
|---|
