| General information |
|---|

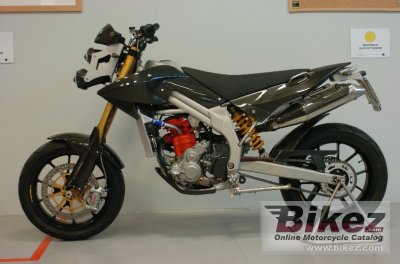

| Model: | Terra Modena 198 |
| Year: | 2013 |
| Category: | Sport |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 449.60 ccm (27.43 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Engine details: | Titanium valves. Sand casted aluminium engine block. |
| Max RPM: | 9000 |
| Bore x stroke: | 98.0 x 59.6 mm (3.9 x 2.3 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Indirect injection. Dell’Orto Ø 50mm throttle body. |
| Fuel control: | DOHC |
| Ignition: | Magneti Marelli |
| Lubrication system: | Separate lubrication system with one pressure pump and two scavenge pumps |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Surflex anti-hop clutch, with ergal cover; wet, multiple hydraulically operated plates. |
| Driveline: | Primary distribution fitted with sprocket gears |
| Emission details: | Euro III |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Aluminium alloy Alsi 9 double bean main frame with a twin under mount. |
| Rake (fork angle): | 26.0° |
| Front suspension: | Ohlins upside-down front suspension fork with 46 mm diameter rods and adjustable compression, rebound and pre-stressing |
| Rear suspension: | Rear swinging fork and Ohlins DPS 46 mm single shock absorber fitted with inert gas cartridge and separator piston. |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 160/60-ZR17 |
| Front brakes: | Single disc |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Wheels: | Marchesini, in cast aluminium. Dunlop Sportmax tyres. |
| Physical measures and capacities |
|---|
| Dry weight: | 120.0 kg (264.6 pounds) |
| Seat height: | 890 mm (35.0 inches) If adjustable, lowest setting. |
| Overall height: | 1,185 mm (46.7 inches) |
| Overall length: | 2,150 mm (84.6 inches) |
| Overall width: | 830 mm (32.7 inches) |
| Wheelbase: | 1,048 mm (41.3 inches) |
| Fuel capacity: | 8.50 litres (2.25 gallons) |
| Reserve fuel capacity: | 1.00 litres (0.26 gallons) |
| Other specifications |
|---|
| Starter: | Electric & kick |
| Instruments: | Programmable digital display |
| Electrical: | 12 V - 9Ah battery |
| Color options: | White |
| Comments: | Italian made bike. |
