| Sym's profilation of this bike |
| SYM emphasizes on the ATV series and introduced a beginner model 200cc Quad Lander 200. EEC approved On-Road 200cc liquid-cooling engine vehicle. |
| General information |
|---|

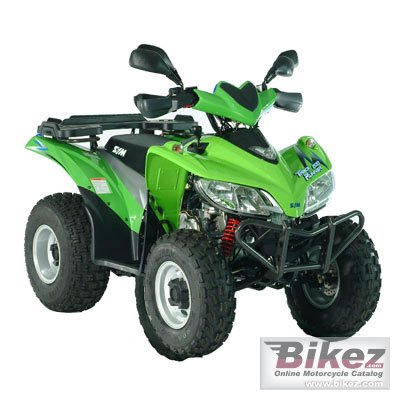

| Model: | Sym Quad Lander 200 | | Year: | 2011 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 171.20 ccm (10.45 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Engine details: | Electroplated ceramic cylinder | | Valves per cylinder: | 4 | | Fuel system: | Carburettor | | Fuel control: | SOHC | | Ignition: | CDI | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Chain | | Driveline: | Automatic CVT with reverse | | Emission details: | Euro 2 | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel | | Front suspension: | Idependent, Single A-arm | | Rear suspension: | Unit Swing Arm | | Front tyre dimensions: | 21/7-10 | | Rear tyre dimensions: | 22/10-10 | | Front brakes: | Double disc. Hydraulic | | Front brakes diameter: | 175 mm (6.9 inches) | | Rear brakes: | Single disc. With parking | | Rear brakes diameter: | 190 mm (7.5 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 199.0 kg (438.7 pounds) | | Overall height: | 1,135 mm (44.7 inches) | | Overall length: | 1,765 mm (69.5 inches) | | Overall width: | 1,040 mm (40.9 inches) | | Wheelbase: | 1,115 mm (43.9 inches) | | Fuel capacity: | 8.00 litres (2.11 gallons) | | Other specifications |
|---|
| Starter: | Electric & kick | | Electrical: | 12 Volt | | Color options: | Green, blue, yellow | | Comments: | ATV made in Taiwan. | | Further information |
|---|
