| General information |
|---|

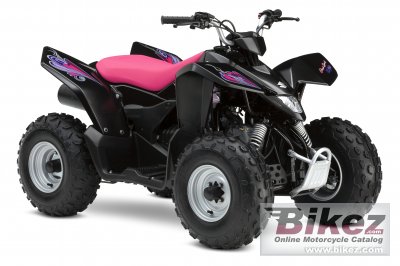

| Model: | Suzuki QuadSport Z90 Special Edition |
| Year: | 2009 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | US$ 2499. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 90.00 ccm (5.49 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Bore x stroke: | 45.5 x 55.2 mm (1.8 x 2.2 inches) |
| Ignition: | CDI |
| Lubrication system: | Wet sump |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independent, swing axle, coil spring, oil damped |
| Rear suspension: | Swingarm type, coil spring, oil damped |
| Front tyre: | 19/7-AT10 |
| Rear tyre: | 19/10-AT9 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 127.0 kg (280.0 pounds) |
| Seat height: | 650 mm (25.6 inches) If adjustable, lowest setting. |
| Overall height: | 915 mm (36.0 inches) |
| Overall length: | 1,505 mm (59.3 inches) |
| Overall width: | 875 mm (34.4 inches) |
| Wheelbase: | 1,005 mm (39.6 inches) |
| Fuel capacity: | 6.00 litres (1.59 gallons) |
| Other specifications |
|---|
| Color options: | Black |
| Starter: | Electric |
