| Suzuki's profilation of this bike |
| the KingQuad 750 has the ultimate power-delivery drivetrain and transmission with three drive modes available: two-wheel drive, four-wheel drive, and front differential-locked four-wheel drive.
|
| General information |
|---|

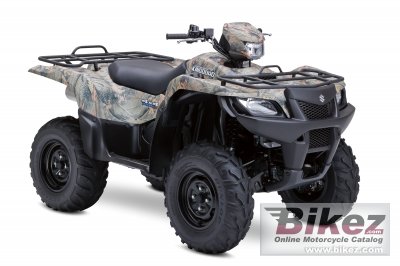

| Model: | Suzuki KingQuad 750AXi Camo | | Year: | 2009 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | US$ 7999. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 722.00 ccm (44.06 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Compression: | 10.0:1 | | Bore x stroke: | 104.0 x 85.0 mm (4.1 x 3.3 inches) | | Fuel system: | Injection | | Fuel control: | DOHC | | Ignition: | Electronic ignition | | Lubrication system: | Wet sump | | Cooling system: | Liquid | Transmission type,
final drive: | Shaft drive (cardan) | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independent, double wishbone, coil spring, oil damped | | Rear suspension: | Independent, double wishbone, coil spring, oil damped | | Front tyre dimensions: | 25/8-AT12 | | Rear tyre dimensions: | 25/10-AT12 | | Front brakes: | Double disc | | Rear brakes: | Sealed multidisc | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 302.0 kg (665.8 pounds) | | Seat height: | 880 mm (34.6 inches) If adjustable, lowest setting. | | Overall height: | 1,245 mm (49.0 inches) | | Overall length: | 2,115 mm (83.3 inches) | | Overall width: | 1,210 mm (47.6 inches) | | Ground clearance: | 270 mm (10.6 inches) | | Wheelbase: | 1,280 mm (50.4 inches) | | Fuel capacity: | 17.50 litres (4.62 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Realtree Hardwoods HD Enhanced | | Comments: | Drive mode 2WD, 4WD and 4WD lock. | | Further information |
|---|
