| General moped information |
|---|

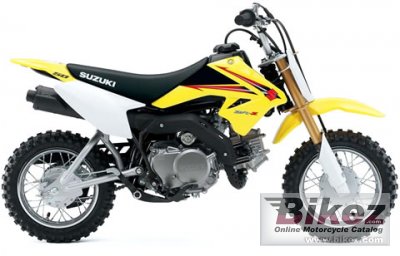

| Model: | Suzuki DR-Z50 | | Year: | 2012 | | Category: | Enduro / offroad | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 3.89 HP (2.8 kW)) @ 9500 RPM | | Torque: | 3.40 Nm (0.3 kgf-m or 2.5 ft.lbs) @ 7000 RPM | | Compression: | 9.7:1 | | Bore x stroke: | 39.0 x 41.8 mm (1.5 x 1.6 inches) | | Fuel system: | Carburettor. Mikuni VM13 | | Fuel control: | OHC | | Lubrication system: | Wet sump | | Cooling system: | Air | | Gearbox: | 3-speed | Transmission type,
final drive: | Chain | | Clutch: | Automatic centrifugal | | Driveline: | Constant mesh bottom neutral three-stage return | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Backbone | | Rake (fork angle): | 25.5° | | Trail: | 36 mm (1.4 inches) | | Front suspension: | Inverted telescopic, coil spring | | Rear suspension: | Swingarm type, coil spring, oil damped | | Front tyre dimensions: | 2.50-10 | | Rear tyre dimensions: | 2.50-10 | | Front brakes: | Expanding brake (drum brake) | | Rear brakes: | Expanding brake (drum brake) | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 54.0 kg (119.0 pounds) | | Seat height: | 560 mm (22.0 inches) If adjustable, lowest setting. | | Overall length: | 1,320 mm (52.0 inches) | | Overall width: | 580 mm (22.8 inches) | | Ground clearance: | 135 mm (5.3 inches) | | Wheelbase: | 935 mm (36.8 inches) | | Fuel capacity: | 3.00 litres (0.79 gallons) | | Oil capacity: | 0.60 litres (0.04 quarts) | | Other specifications |
|---|
| Starter: | Electric & kick | | Color options: | Yellow/black | | Comments: | Intended for children under 40 kg. Sold in Japan. | | Further information |
|---|
