| General information |
|---|

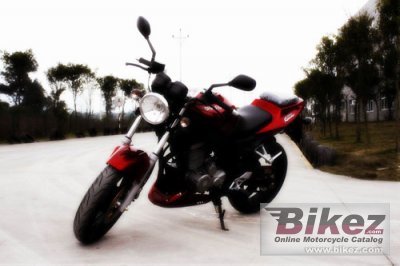

| Model: | Shineray XY-250 5 |
| Year: | 2011 |
| Category: | Naked bike |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 232.60 ccm (14.19 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 16.09 HP (11.7 kW)) @ 7500 RPM |
| Torque: | 18.00 Nm (1.8 kgf-m or 13.3 ft.lbs) @ 6000 RPM |
| Top speed: | 110.0 km/h (68.4 mph) |
| Compression: | 9.0:1 |
| Bore x stroke: | 69.0 x 62.2 mm (2.7 x 2.4 inches) |
| Fuel system: | Carburettor |
| Ignition: | CDI |
| Lubrication system: | Pressed/Splash |
| Cooling system: | Oil & air |
Transmission type,
final drive: | Chain |
| Clutch: | Manual |
| Exhaust system: | Aluminum muffler |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Cartridge fork with spring-preload, rebound and compression damping adjustability,128mm travel |
| Rear suspension: | Unit Pro-Link single shock with spring preload, rebound and compression damping adjustability,130mm travel |
| Front tyre dimensions: | 110/70-17 |
| Rear tyre dimensions: | 140/60-17 |
| Front brakes: | Single disc. Radial-mounted two-piston calipers |
| Front brakes diameter: | 276 mm (10.9 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 150.0 kg (330.7 pounds) |
| Power/weight ratio: | 0.1073 HP/kg |
| Seat height: | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall height: | 1,020 mm (40.2 inches) |
| Overall length: | 2,010 mm (79.1 inches) |
| Overall width: | 750 mm (29.5 inches) |
| Ground clearance: | 150 mm (5.9 inches) |
| Wheelbase: | 1,375 mm (54.1 inches) |
| Fuel capacity: | 16.00 litres (4.23 gallons) |
| Oil capacity: | 1.10 litres (0.07 quarts) |
| Other specifications |
|---|
| Starter: | Electric |
| Instruments: | Analogue |
| Electrical: | 12V 10Ah battery |
| Seat: | 2-person seat |
| Color options: | Blue |
| Comments: | Made in China. |
