12 Schwinn Laguna 50 specificationsSchwinn Laguna 50 2012

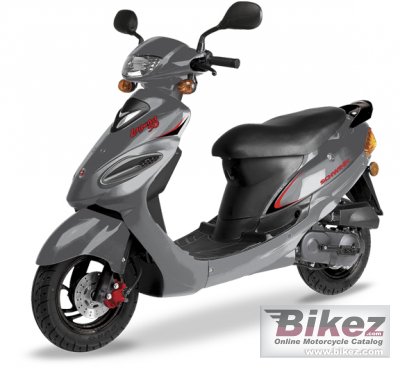

2012 Schwinn Laguna 50 photo
Picture credits - Schwinn. Click to submit more pictures.
Show more 2012 Schwinn Laguna 50 images
2012 Schwinn Laguna 50

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
List all mopeds

Tip a friend
List related bikes



Schwinn's profilation of this bike
With the new 2012 Laguna 50, we´ve built in all the modern features: telescopic front suspension, front disc brake, handlebar directional headlight, and a smooth 4-stroke 49.5cc motor. All backed by our outstanding Extended Warranty, the 2012 Laguna 50 takes to the road with passion and comfort.

General moped information
Model:Schwinn Laguna 50
Year:2012
Category:Scooter
Rating:Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:49.50 ccm (3.02 cubic inches)
Engine type:Single cylinder, four-stroke
Fuel system:Carburettor
Cooling system:Air
Gearbox:Automatic
Transmission type,
final drive:
Belt
Driveline:CVT
Chassis, suspension, brakes and wheels
Frame type:Steel
Front suspension:Telescopic
Rear suspension:Swing-Arm with Dual Adjustable Coil-Over Shocks
Front tyre dimensions:CST3.50-10
Rear tyre dimensions:CST3.50-10
Front brakes:Single disc. Hydraulic
Rear brakes:Expanding brake (drum brake)
Wheels:Alloy rims
Physical measures and capacities
Dry weight:87.1 kg (192.0 pounds)
Overall length:1,737 mm (68.4 inches)
Overall width:632 mm (24.9 inches)
Fuel capacity:3.97 litres (1.05 gallons)
Other specifications
Starter:Electric & kick
Factory warranty:4 Year Limited Warranty
Color options:Red, charcoal
