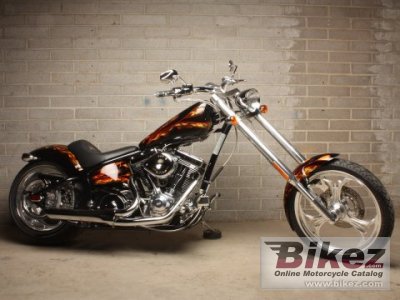

2009 Saxon Griffin specifications, pictures, reviews and rating
Picture credits - Saxon. Click to submit more pictures.
|Category:||Custom / cruiser|
|Rating:||Do you know this bike?|
Click here to rate it. We miss 2 votes to show the rating.
|Engine and transmission|
|Displacement:||1573.00 ccm (95.98 cubic inches)|
|Engine type:||V2, four-stroke|
|Bore x stroke:||94.0 x 119.4 mm (3.7 x 4.7 inches)|
|Fuel system:||Carburettor. S and S Super E|
|Fuel consumption:||67.20 litres/100 km (1.5 km/l or 3.50 mpg)|
|Greenhouse gases:||1,559.0 CO2 g/km. (CO2 - Carbon dioxide emission)|
|Chassis, suspension, brakes and wheels|
|Frame type:||Stretch: 6 In Downtube, 2 In Backbone|
|Rake (fork angle):||43.0°|
|Front suspension:||64 mm Inverted 11 In Over|
|Rear suspension:||Hidden Progressive Shocks|
|Front brakes:||Single disc. Bremo 4-piston calipers|
|Rear brakes:||Single disc. Bremo|
|Physical measures and capacities|
|Dry weight:||297.1 kg (655.0 pounds)|
|Seat height:||660 mm (26.0 inches) If adjustable, lowest setting.|
|Overall length:||2,743 mm (108.0 inches)|
|Wheelbase:||2,070 mm (81.5 inches)|
|Fuel capacity:||15.14 litres (4.00 gallons)|
|Oil capacity:||3.30 litres (0.22 quarts)|
