| General information |
|---|

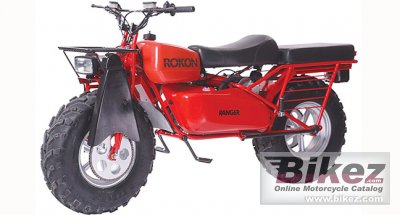

| Model: | Rokon Ranger |
| Year: | 2013 |
| Category: | Enduro / offroad |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | US$ 6375. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 160.00 ccm (9.76 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Engine details: | Honda fan-cooled engine |
| Power: | 5.00 HP (3.6 kW)) @ 3600 RPM |
| Torque: | 10.90 Nm (1.1 kgf-m or 8.0 ft.lbs) @ 2500 RPM |
| Fuel system: | Carburettor. Horizontal type, butterfly valve |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | Transistorized magneto |
| Cooling system: | Oil & air |
| Gearbox: | 3-speed |
Transmission type,
final drive: | Chain |
| Driveline: | Full time, front and rear wheel drive. Automatic torque converter into a three-gear range selector. |
| Exhaust system: | Muffler and US Forestry approved spark arrestor |
| Chassis, suspension, brakes and wheels |
|---|
| Front tyre: | 5.90-15 |
| Rear tyre: | 5.90-15 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Wheels: | Steel, spoked |
| Physical measures and capacities |
|---|
| Dry weight: | 98.8 kg (217.8 pounds) |
| Power/weight ratio: | 0.0506 HP/kg |
| Overall length: | 2,007 mm (79.0 inches) |
| Overall width: | 762 mm (30.0 inches) |
| Ground clearance: | 381 mm (15.0 inches) |
| Wheelbase: | 1,295 mm (51.0 inches) |
| Fuel capacity: | 10.18 litres (2.69 gallons) |
| Other specifications |
|---|
| Color options: | Red, green, black, camouflage |
| Starter: | Kick |
| Electrical: | 88 watt charging system |
| Factory warranty: | 1 year limited |
| Comments: | The electric starter is optional. |
