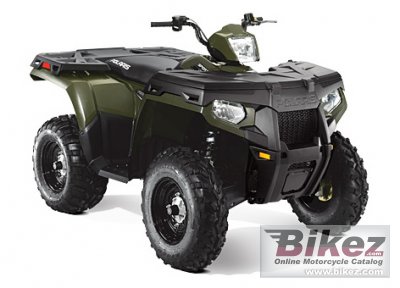

| Polaris' profilation of this bike |
| A restyled body gives the Sportsman an aggressive new look and improved sight lines for the driver. The Lock and Ride composite front rack system and matching rear rack make it easy to carry gear. |
| General information |
|---|
| Model: | Polaris Sportsman 500 HO | | Year: | 2011 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Price as new (MSRP): | US$ 5999. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 498.00 ccm (30.39 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Fuel system: | Carburettor | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Shaft drive (cardan) | | Driveline: | On-Demand True AWD/2WD | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | MacPherson Strut with 8.2 in. (20.8 cm) Travel | | Rear suspension: | Dual A-Arm, IRS 9.5 in. (24.1 cm) Travel | | Front tyre dimensions: | 25/8-12 | | Rear tyre dimensions: | 25/11-12 | | Front brakes: | Single disc | | Rear brakes: | Expanding brake (drum brake) | | Physical measures and capacities |
|---|
| Dry weight: | 315.7 kg (696.0 pounds) | | Seat height: | 857 mm (33.7 inches) If adjustable, lowest setting. | | Overall length: | 2,108 mm (83.0 inches) | | Overall width: | 2,108 mm (83.0 inches) | | Ground clearance: | 286 mm (11.3 inches) | | Wheelbase: | 1,283 mm (50.5 inches) | | Fuel capacity: | 15.52 litres (4.10 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Instruments: | Digital Gauge, Analog Speedometer, Odometer, Tachometer, Tripmeter, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet | | Light: | Dual 50w Low Beam Bumper Lights, Single 50w High Beam Pod Light; Dual Brakelights/Taillights | | Carrying capacity: | Front rack 90 lb 40.8 kg). Rear rack 180 lb (81.6 kg). | | Color options: | Red, Green | | Further information |
|---|
