05 Piaggio B 500 specificationsPiaggio B 500 2005

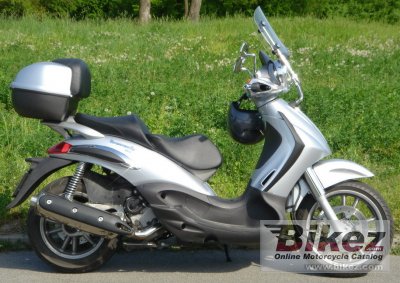

2005 Piaggio B 500 photo
Picture submitted by anonymous user.. Click to submit more pictures.
   Show big 2005 Piaggio B 500 image
2005 Piaggio B 500

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Piaggio's profilation of this bike
The new Piaggio Maxi High Wheel Scooter; strong design and character.

General information
Model:Piaggio B 500
Year:2005
Category:Scooter
Rating:78.4 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:460.00 ccm (28.07 cubic inches)
Engine type:Single cylinder, four-stroke
Power:39.00 HP (28.5 kW)) @ 7500 RPM
Torque:43.00 Nm (4.4 kgf-m or 31.7 ft.lbs) @ 5500 RPM
Top speed:160.9 km/h (100.0 mph)
Compression:10.5:1
Bore x stroke:92.0 x 69.0 mm (3.6 x 2.7 inches)
Fuel control:SOHC
Ignition:Electronic inductive discharge ignition integrated with fuel injection
Lubrication system:Wet sump
Cooling system:Liquid
Gearbox:Automatic
Clutch:Centrifugal
Chassis, suspension, brakes and wheels
Frame type:Double cradle, high strength tubular steel lattice
Front suspension:Telescopic hydraulic fork, stem 41 mm
Front suspension travel:90 mm (3.5 inches)
Rear suspension:Engine unit acts as swinging arm, with two dual-effect hydraulic dampers, helical springs adjustable to four positions of pre-load
Rear suspension travel:90 mm (3.5 inches)
Front tyre dimensions:110/70-16
Rear tyre dimensions:150/70-14
Front brakes:Double disc
Front brakes diameter:260 mm (10.2 inches)
Rear brakes:Single disc
Rear brakes diameter:240 mm (9.4 inches)
Physical measures and capacities
Dry weight:189.0 kg (416.7 pounds)
Weight incl. oil, gas, etc:213.0 kg (469.6 pounds)
Power/weight ratio:0.2063 HP/kg
Seat height:780 mm (30.7 inches) If adjustable, lowest setting.
Overall length:2,215 mm (87.2 inches)
Overall width:700 mm (27.6 inches)
Wheelbase:1,540 mm (60.6 inches)
Fuel capacity:13.20 litres (3.49 gallons)
Other specifications
Starter:Electric & kick
