| General information |
|---|

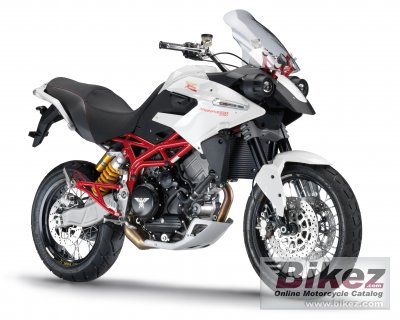

| Model: | Moto Morini Granpasso 1200 |
| Year: | 2011 |
| Category: | Allround |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Price as new (MSRP): | Euro 12790. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1187.00 ccm (72.43 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | 87 degree V-twin |
| Power: | 118.00 HP (86.1 kW)) @ 8500 RPM |
| Torque: | 103.60 Nm (10.6 kgf-m or 76.4 ft.lbs) @ 7000 RPM |
| Compression: | 12.5:1 |
| Bore x stroke: | 107.0 x 66.0 mm (4.2 x 2.6 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Magneti Marelli |
| Ignition: | I.A.W. electronics |
| Lubrication system: | Forced by oil pump |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Emission details: | Euro 3 |
| Exhaust system: | Sport Termignoni with double silencer, 3-way catalytic converter and oxygen sensor. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | High-strength steel tube trellis frame |
| Rake (fork angle): | 26.5° |
| Trail: | 135 mm (5.3 inches) |
| Front suspension: | Marzocchi upside down fork |
| Front suspension travel: | 175 mm (6.9 inches) |
| Rear suspension: | Ohlins single shock absorber |
| Rear suspension travel: | 200 mm (7.9 inches) |
| Front tyre dimensions: | 110/80-R19 |
| Rear tyre dimensions: | 150/70-R17 |
| Front brakes: | Double disc. Floating disc, 2-piston |
| Front brakes diameter: | 298 mm (11.7 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 255 mm (10.0 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 210.0 kg (463.0 pounds) |
| Power/weight ratio: | 0.5619 HP/kg |
| Seat height: | 875 mm (34.4 inches) If adjustable, lowest setting. |
| Overall length: | 2,170 mm (85.4 inches) |
| Overall width: | 850 mm (33.5 inches) |
| Ground clearance: | 200 mm (7.9 inches) |
| Wheelbase: | 1,505 mm (59.3 inches) |
| Fuel capacity: | 27.00 litres (7.13 gallons) |
| Reserve fuel capacity: | 5.50 litres (1.45 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Factory warranty: | 3 year unlimited milage |
| Color options: | White/black/red, titanium/black, red/black |
| Comments: | Made in Italy. |
