| General information |
|---|

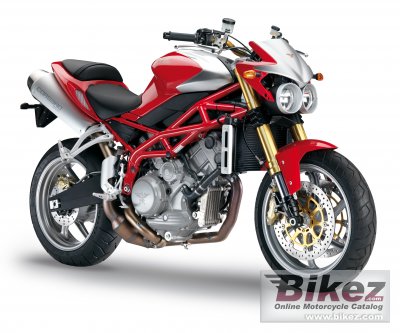

| Model: | Moto Morini Corsaro 1200 |
| Year: | 2012 |
| Category: | Naked bike |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 1187.00 ccm (72.43 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | 87 degree longitudinal V-twin. Moto Morini Bialbero CorsaCorta (DOHC - Short Stroke). |
| Power: | 140.00 HP (102.2 kW)) @ 8500 RPM |
| Torque: | 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 6500 RPM |
| Compression: | 12.5:1 |
| Bore x stroke: | 107.0 x 66.0 mm (4.2 x 2.6 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Magneti Marelli, 54 mm throttle body |
| Fuel control: | DOHC |
| Ignition: | I.A.W. electronic |
| Lubrication system: | Forced with trochoidal pump |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multiple-plate clutch in oil bath with antiskipping system and radial master-cylinder |
| Emission details: | Euro 3. |
| Exhaust system: | Sport Termignoni with double silencer, 3-way catalytic converter and oxygen sensor. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | High-strength steel tube trellis frame |
| Rake (fork angle): | 24.5° |
| Trail: | 100 mm (3.9 inches) |
| Front suspension: | Marzocchi upside down with 50 mm/ 1.96 Ø |
| Front suspension travel: | 129 mm (5.1 inches) |
| Rear suspension: | Sachs shock absorber |
| Rear suspension travel: | 129 mm (5.1 inches) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 180/55-ZR17 |
| Front brakes: | Double disc. Bremo, 4-piston caliper |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Bremo |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Wheels: | Brembo rims in light alloy, 6 spokes |
| Physical measures and capacities |
|---|
| Dry weight: | 198.0 kg (436.5 pounds) |
| Power/weight ratio: | 0.7071 HP/kg |
| Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall length: | 2,170 mm (85.4 inches) |
| Overall width: | 865 mm (34.1 inches) |
| Ground clearance: | 162 mm (6.4 inches) |
| Wheelbase: | 1,470 mm (57.9 inches) |
| Fuel capacity: | 21.00 litres (5.55 gallons) |
| Reserve fuel capacity: | 4.50 litres (1.19 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Instruments: | Electronic/analogic rev counter multifunction LCD display |
| Light: | Dual head lights |
| Factory warranty: | 3 years. |
| Color options: | Black/grey, red/gray, white/black, yellow/black |
