11 Moto Guzzi Nevada Classic 750 specificationsMoto Guzzi Nevada Classic 750 2011

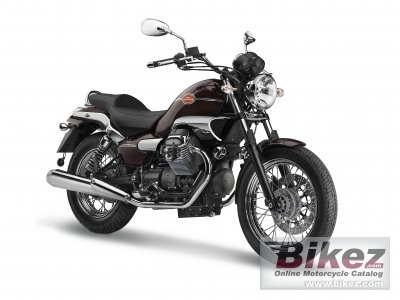

2011 Moto Guzzi Nevada Classic 750 photo
Picture credits - Moto Guzzi. Click to submit more pictures.
   Show big 2011 Moto Guzzi Nevada Classic 750 imageShow more 2011 Moto Guzzi Nevada Classic 750 images
2011 Moto Guzzi Nevada Classic 750

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Moto Guzzi's profilation of this bike
A treat for the eyes, easy to ride, and with that unmistakable, slightly retro look that never ceases to please, the Nevada Classic 750 is the definitive custom.

General information
Model:Moto Guzzi Nevada Classic 750
Year:2011
Category:Custom / cruiser
Rating:Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating.
Price as new (MSRP): Euro 7860. UK 6199. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:744.00 ccm (45.40 cubic inches)
Engine type:V2, four-stroke
Engine details:90 V-Twin. 2 overhead valves with light alloy push-rod
Power:47.60 HP (34.7 kW)) @ 6800 RPM
Torque:54.70 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 RPM
Compression:9.6:1
Bore x stroke:80.0 x 74.0 mm (3.1 x 2.9 inches)
Valves per cylinder:2
Fuel system:Injection. Weber Weber-Marelli IAW15RC electronic injection
Fuel control:OHV
Ignition:Magneti Marelli IAW 15RC electronic digital ignition with inductive spark
Lubrication system:By lobes with pressure pump
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Shaft drive (cardan)
Clutch:Single disc, dry, with cush drive
Emission details:Three-way catalyzer with Lambda sensor
Chassis, suspension, brakes and wheels
Frame type:Detachable tubular duplex cradle in special high-strengh steel
Rake (fork angle):27.5
Trail:138 mm (5.4 inches)
Front suspension:Marzocchi hydraulic telescopic fork, 40 mm
Front suspension travel:130 mm (5.1 inches)
Rear suspension:Pressure fused oscillating swing arm in light alloy with two preload adjustable shocks
Rear suspension travel:130 mm (5.1 inches)
Front tyre dimensions:100/90-18
Rear tyre dimensions:130/90-16
Front brakes:Single disc
Front brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc
Rear brakes diameter:260 mm (10.2 inches)
Physical measures and capacities
Dry weight:184.0 kg (405.7 pounds)
Weight incl. oil, gas, etc:196.0 kg (432.1 pounds)
Power/weight ratio:0.2587 HP/kg
Overall height:1,068 mm (42.0 inches)
Overall length:2,166 mm (85.3 inches)
Ground clearance:290 mm (11.4 inches)
Wheelbase:1,467 mm (57.8 inches)
Fuel capacity:14.00 litres (3.70 gallons)
Reserve fuel capacity:4.00 litres (1.06 gallons)
Other specifications
Starter:Electric
Color options:Black, white, burgundy
