| General information |
|---|

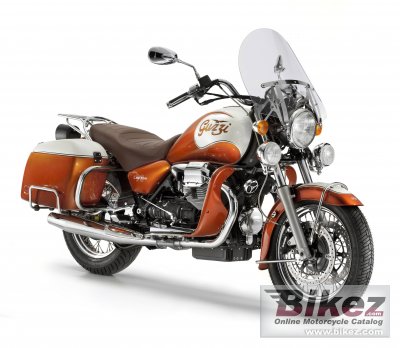

| Model: | Moto Guzzi California 90 Anniversary |
| Year: | 2012 |
| Category: | Classic |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Price as new (MSRP): | US$ 15990. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1064.00 ccm (64.93 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | 90° V-Twin. 2 overhead valves moved by light alloy push–rod sand rocker arm with mechanical tappets. |
| Power: | 74.00 HP (54.0 kW)) @ 6400 RPM |
| Torque: | 88.00 Nm (9.0 kgf-m or 64.9 ft.lbs) @ 5000 RPM |
| Compression: | 9.8:1 |
| Bore x stroke: | 92.0 x 80.0 mm (3.6 x 3.1 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Injection. Magneti Marelli IAW alfa-n system Multipoint phased sequential injection; |
| Fuel control: | OHV |
| Ignition: | Magneti Marelli IAW 15RC electronic digital ignition with inductive spark |
| Lubrication system: | Forced lobes, with geared pump and pressure regulator |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Clutch: | Single disc, dry, with mechanical control |
| Driveline: | Primary drive: helical gears, ratio 17/21 = 1: 1.235. Secondary drive: shaft drive, ratio 8/33 = 1:4.125 |
| Emission details: | Euro 3. |
| Exhaust system: | 2 into 2 exhaust; three-way catalyzer with Lambda sensor (Euro 3) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Detachable tubular duplex cradle in special high-strengh steel |
| Rake (fork angle): | 29.0° |
| Trail: | 116 mm (4.6 inches) |
| Front suspension: | Marzocchi hydraulic telescopic fork, 45 mm |
| Front suspension travel: | 140 mm (5.5 inches) |
| Rear suspension: | Swing arm with 2 hydraulic shock absorbers |
| Rear suspension travel: | 96 mm (3.8 inches) |
| Front tyre dimensions: | 110/90-18 |
| Rear tyre dimensions: | 150/70-17 |
| Front brakes: | Double disc. Two Brembo Oro series stainless steel flooating discs, with 4 piston calipers |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Brembo stainless steel fixed disc, with 2 piston calipers |
| Rear brakes diameter: | 282 mm (11.1 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 250.8 kg (553.0 pounds) |
| Power/weight ratio: | 0.2950 HP/kg |
| Seat height: | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall height: | 1,389 mm (54.7 inches) |
| Overall length: | 2,362 mm (93.0 inches) |
| Overall width: | 813 mm (32.0 inches) |
| Ground clearance: | 190 mm (7.5 inches) |
| Wheelbase: | 1,560 mm (61.4 inches) |
| Fuel capacity: | 19.00 litres (5.02 gallons) |
| Reserve fuel capacity: | 4.00 litres (1.06 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | California Metallic Orange/Diamond White |
| Comments: | Windshield |
