| Kymco's profilation of this bike |

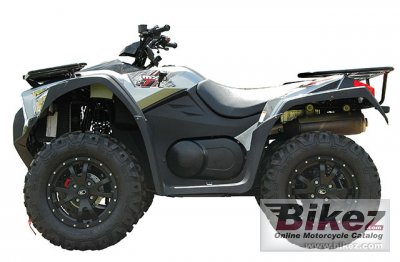

| The MXU 500i LE is based on the newly designed MXU 500i, but comes with limited edition amenities that turn the standard ATV into a slick trail and utility ready 4x4. The MXU 500i LE is available in Limited Edition Metallic Silver Paint. |
| General information |
|---|
| Model: | Kymco MXU 500i LE | | Year: | 2013 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | US$ 8299. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 498.50 ccm (30.42 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 47.61 HP (34.8 kW)) @ 6500 RPM | | Torque: | 40.00 Nm (4.1 kgf-m or 29.5 ft.lbs) @ 5500 RPM | | Compression: | 10.5:1 | | Bore x stroke: | 92.0 x 75.0 mm (3.6 x 3.0 inches) | | Fuel system: | Injection | | Fuel control: | OHC | | Ignition: | CDI | | Cooling system: | Liquid | Transmission type,
final drive: | Belt | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Dual A-Arm | | Rear suspension: | Independent | | Front tyre dimensions: | 25/8-12 | | Rear tyre dimensions: | 25/10-12 | | Front brakes: | Double disc | | Front brakes diameter: | 190 mm (7.5 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 220 mm (8.7 inches) | | Wheels: | Black Aluminum Alloy Wheels | | Physical measures and capacities |
|---|
| Dry weight: | 305.0 kg (672.4 pounds) | | Power/weight ratio: | 0.1561 HP/kg | | Seat height: | 890 mm (35.0 inches) If adjustable, lowest setting. | | Overall height: | 1,313 mm (51.7 inches) | | Overall length: | 2,203 mm (86.7 inches) | | Overall width: | 1,223 mm (48.1 inches) | | Wheelbase: | 1,293 mm (50.9 inches) | | Fuel capacity: | 17.00 litres (4.49 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Instruments: | Backlit Digital Dash (clock, mph, trip, fuel, odometer) | | Carrying capacity: | Heavy-Duty Front and Rear Equipment Racks | | Factory warranty: | One-Year Limited Factory Warranty | | Color options: | Metallic Silver. | | Comments: | 3,000-lb Winch | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 13 Kymco MXU 500i LE discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
