| General information |
|---|

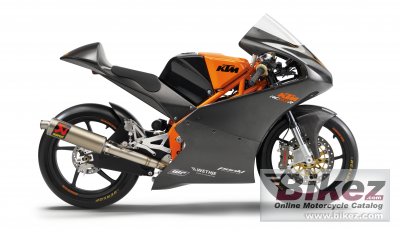

| Model: | KTM RC 250 R |
| Year: | 2013 |
| Category: | Cross / motocross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 249.50 ccm (15.22 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Engine details: | Reed intake. |
| Torque: | 28.00 Nm (2.9 kgf-m or 20.7 ft.lbs) @ 11000 RPM |
| Compression: | 14.5:1 |
| Bore x stroke: | 81.0 x 48.5 mm (3.2 x 1.9 inches) |
| Fuel system: | Injection. Dual injector throttle body, oval, DM50 equivalent |
| Fuel control: | DOHC |
| Ignition: | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
| Lubrication system: | Semi dry sump, 1 pressure pump, 2 suction pumps |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multi disc wet clutch |
| Driveline: | 13:48. Primary drive: 26:72. |
| Exhaust system: | Akrapovic full titanium system single silencer, 107 dB, additional 100/103 dB killers |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular steel trellis frame with adjustable headstock and swingarm pivot. Subframe: Wethje carbonfibre composite, monoblock. |
| Front suspension: | WP RCMA 3548 / 35 mm USD fork, adjustable spring preload, adjustable compression and rebound damping, 20 clicks |
| Front suspension travel: | 205 mm (8.1 inches) |
| Rear suspension: | WP BAVP 4618 rear shock, adjustable shock length, hydraulic preload adjuster, adjustable High-/Low-Speed- compression damping and rebound damping, 20 clicks |
| Rear suspension travel: | 185 mm (7.3 inches) |
| Front tyre dimensions: | 95/75-R17 |
| Rear tyre dimensions: | 115/75-R17 |
| Front brakes: | Single disc |
| Front brakes diameter: | 290 mm (11.4 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 190 mm (7.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 82.0 kg (180.8 pounds) |
| Seat height: | 992 mm (39.1 inches) If adjustable, lowest setting. |
| Ground clearance: | 385 mm (15.2 inches) |
| Wheelbase: | 1,210 mm (47.6 inches) |
| Fuel capacity: | 10.50 litres (2.77 gallons) |
| Other specifications |
|---|
| Starter: | Kick |
| Electrical: | External starter / 12 V 0.8 Ah battery. |
| Color options: | Orange/black |
