13 KTM 990 SM R specificationsKTM 990 SM R 2013

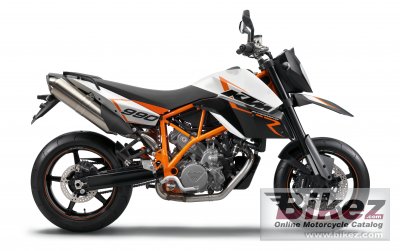

2013 KTM 990 SM R photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2013 KTM 990 SM R imageShow more 2013 KTM 990 SM R images
2013 KTM 990 SM R

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
A state-of-the-art V2 engine with electronic injection and impressive punch, a perfectly balanced chassis, a whole bunch of high-quality components - the 990 SM R is the most radical twin-cylinder Supermoto on the market - and, in its latest form, it is still just as dynamic, but much more economical and safer too, thanks to superb Bosch 9M+ and #8209;ABS.

General information
Model:KTM 990 SM R
Year:2013
Category:Super motard
Rating:Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating.
Engine and transmission
Displacement:999.00 ccm (60.96 cubic inches)
Engine type:Twin, four-stroke
Engine details:75° V arrangement
Power:113.99 HP (83.2 kW))
Bore x stroke:101.0 x 62.4 mm (4.0 x 2.5 inches)
Fuel system:Injection
Ignition:Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication system:Dry-sump lubrication with 2 rotor pumps
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Wet multi-disc clutch / hydraulically operated
Driveline:5/8  x  5/16 ¯ X Ring. Primary drive: 35:67.
Chassis, suspension, brakes and wheels
Frame type:Tubular space frame made from chrome molybdenum steel, powder-coated
Rake (fork angle):24.4°
Front suspension:WP  Suspension Up Side Down 4860 ROMA PA
Front suspension travel:280 mm (11.0 inches)
Rear suspension:WP  Suspension 4618 BAVP DCC
Rear suspension travel:310 mm (12.2 inches)
Front brakes:Double disc. Floating disc. Four-piston calipers. Radially mounted.
Front brakes diameter:305 mm (12.0 inches)
Rear brakes:Single disc. Two-piston calipers.
Rear brakes diameter:240 mm (9.4 inches)
Physical measures and capacities
Dry weight:192.0 kg (423.3 pounds)
Power/weight ratio:0.5937 HP/kg
Seat height:875 mm (34.4 inches) If adjustable, lowest setting.
Ground clearance:195 mm (7.7 inches)
Wheelbase:1,505 mm (59.3 inches)
Fuel capacity:15.00 litres (3.96 gallons)
Other specifications
Starter:Electric
Color options:Gray/white/orange
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 13 KTM 990 SM R discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Rate motorcycles you know

Rate motorcycles you know and help your fellow riders to find the bike that is right for them. Bikez has the most users and the most extensive motorcycle rating on the net. It includes reliability, design, engine performance, accident risk, repair cost, offroad capabilities, racing track capabilities and touring capabilities.

The ratings are also used to rank the 100 most popular MC models each year since 1990. The lists are adjusted weekly as new ratings are added. You can check out the rating of the 2013 KTM 990 SM R and compare it to other bikes here.
