| General information |
|---|

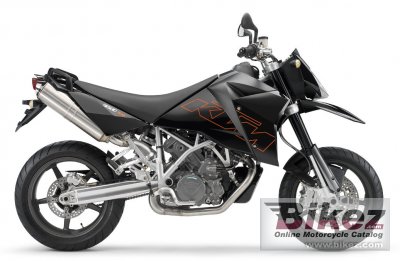

| Model: | KTM 950 Supermoto Black |
| Year: | 2006 |
| Category: | Super motard |
| Rating: | 77.5 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 942.00 ccm (57.48 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 96.55 HP (70.5 kW)) @ 8000 RPM |
| Torque: | 94.00 Nm (9.6 kgf-m or 69.3 ft.lbs) @ 6500 RPM |
| Compression: | 11.5:1 |
| Bore x stroke: | 100.0 x 72.0 mm (3.9 x 2.8 inches) |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | Denso battery ignition |
| Lubrication system: | Pressure lubrication |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet multi-disc clutch, operated hydraulically |
| Exhaust system: | Twin stainless steel with catalytic converter |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular space frame, chromium-molybdenum, powder-coated |
| Rake (fork angle): | 25.4° |
| Trail: | 110 mm (4.3 inches) |
| Front suspension: | WP-USD 48 mm (1.89 inches) |
| Front wheel travel: | 300 mm (11.8 inches) |
| Rear suspension: | WP-Monoshock |
| Rear wheel travel: | 335 mm (13.2 inches) |
| Front tyre: | 120/70-ZR17 |
| Rear tyre: | 180/55-17 |
| Front brakes: | Double disc |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 191.0 kg (421.1 pounds) |
| Power/weight ratio: | 0.5055 HP/kg |
| Seat height: | 865 mm (34.1 inches) If adjustable, lowest setting. |
| Ground clearance: | 190 mm (7.5 inches) |
| Wheelbase: | 1,510 mm (59.4 inches) |
| Fuel capacity: | 17.50 litres (4.62 gallons) |
| Other specifications |
|---|
| Color options: | Black |
| Starter: | Electric |
| Comments: | Not available in the US. |
