13 KTM 85 SX 17/14 specificationsKTM 85 SX 17/14 2013

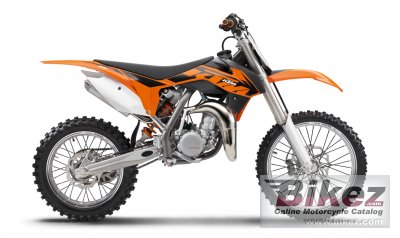

2013 KTM 85 SX 17-14 photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2013 KTM 85 SX 17/14 imageShow more 2013 KTM 85 SX 17/14 images
2013 KTM 85 SX 17/14

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
Even professionals start off small. The KTM 85 SX 2013 is the perfect tool for mucky devils and those who want to become one. With its completely revamped chassis, new bodywork and a further refined, more powerful engine, it´s more competitive than ever before.

General information
Model:KTM 85 SX 17/14
Year:2013
Category:Cross / motocross
Rating:Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:84.93 ccm (5.18 cubic inches)
Engine type:Single cylinder, two-stroke
Engine details:Reed intake.
Bore x stroke:47.0 x 49.0 mm (1.9 x 1.9 inches)
Ignition:Moric Digital 2M1
Lubrication system:Mixture oil lubrication
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Multidisc clutch in oil bath/hydraulically activated
Driveline:1/2  x  5/16 
Chassis, suspension, brakes and wheels
Frame type:Central tube frame made of chrome molybdenum steel tubing
Rake (fork angle):24.0°
Front suspension:WP  Suspension USD  35
Front suspension travel:205 mm (8.1 inches)
Rear suspension:WP  Suspension  PDS 4618 BAVP DCC
Rear suspension travel:185 mm (7.3 inches)
Front brakes:Single disc. Four-piston calipers.
Front brakes diameter:220 mm (8.7 inches)
Rear brakes:Single disc. Two-piston calipers.
Rear brakes diameter:210 mm (8.3 inches)
Physical measures and capacities
Seat height:750 mm (29.5 inches) If adjustable, lowest setting.
Ground clearance:280 mm (11.0 inches)
Wheelbase:1,290 mm (50.8 inches)
Fuel capacity:5.00 litres (1.32 gallons)
Other specifications
Starter:Kick
Color options:Orange/black
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 13 KTM 85 SX 17/14 discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Rate motorcycles you know

Rate motorcycles you know and help your fellow riders to find the bike that is right for them. Bikez has the most users and the most extensive motorcycle rating on the net. It includes reliability, design, engine performance, accident risk, repair cost, offroad capabilities, racing track capabilities and touring capabilities.

The ratings are also used to rank the 100 most popular MC models each year since 1990. The lists are adjusted weekly as new ratings are added. You can check out the rating of the 2013 KTM 85 SX 17/14 and compare it to other bikes here.
