09 KTM 85 SX 17/14 specificationsKTM 85 SX 17/14 2009

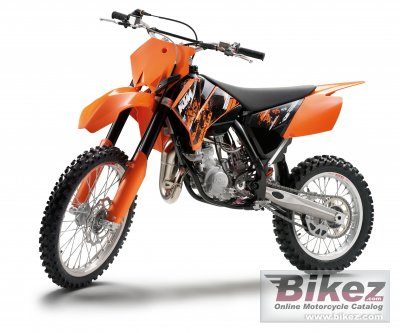

2009 KTM 85 SX 17-14 photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2009 KTM 85 SX 17/14 imageShow more 2009 KTM 85 SX 17/14 images
2009 KTM 85 SX 17/14

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
The 85 SX has long been the benchmark in its class. The KTM engineers have once again exceeded themselves improving this almost perfect bike even further. Be it power, chassis or quality - the 85 SX is a contender which strikes fear into your opponents.

General information
Model:KTM 85 SX 17/14
Year:2009
Category:Minibike, cross
Rating:60.1 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:84.90 ccm (5.18 cubic inches)
Engine type:Single cylinder, two-stroke
Bore x stroke:47.0 x 49.0 mm (1.9 x 1.9 inches)
Fuel system:Carburettor. Keihin PWK 28
Ignition:Moric digital 2M1
Lubrication system:Mixture lubrication 1:40
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Wet multi-disc clutch, operated hydraulically
Exhaust system:Aluminium
Chassis, suspension, brakes and wheels
Frame type:Double grinded central double-cradle-type frame. Aluminium subframe.
Rake (fork angle):24.0
Trail:220 mm (8.7 inches)
Front suspension:WP USD, 43 mm
Front suspension travel:280 mm (11.0 inches)
Rear suspension:WP monoshock PDS
Rear suspension travel:300 mm (11.8 inches)
Front tyre dimensions:70/100-17
Rear tyre dimensions:90/100-14
Front brakes:Single disc. Bremo
Front brakes diameter:220 mm (8.7 inches)
Rear brakes:Single disc. Bremo
Rear brakes diameter:200 mm (7.9 inches)
Physical measures and capacities
Dry weight:66.0 kg (145.5 pounds)
Seat height:845 mm (33.3 inches) If adjustable, lowest setting.
Ground clearance:385 mm (15.2 inches)
Wheelbase:1,290 mm (50.8 inches)
Fuel capacity:5.00 litres (1.32 gallons)
Other specifications
Starter:Kick
Color options:Orange/black
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 09 KTM 85 SX 17/14 discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Buying a bike starts at Bikez

Get a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc.

Show any 2009 KTM 85 SX 17/14 for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free.

You are also welcome to read and submit motorcycle reviews.


Rating sample for this KTM bike
Racing track capabilities for the 2009 KTM 85 SX 17/14:


(62.9 out of 100)

Click here for complete rating. You can also compare bikes.
