09 KTM 690 Enduro specificationsKTM 690 Enduro 2009

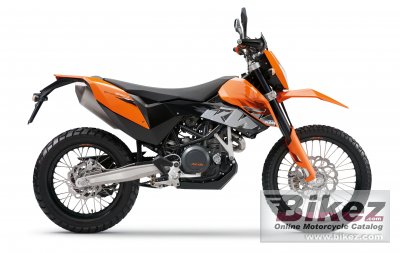

2009 KTM 690 Enduro photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2009 KTM 690 Enduro imageShow more 2009 KTM 690 Enduro images
2009 KTM 690 Enduro

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
For anyone looking for the ultimate all-rounder, the 690 Enduro is the right choice. It masters trails reserved otherwise only for EXC bikes, and is equally suitable for a trip to Morocco, travelling there by motorway. And all of this with a passenger and luggage if desired!

General information
Model:KTM 690 Enduro
Year:2009
Category:Enduro / offroad
Rating:79.3 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:654.00 ccm (39.91 cubic inches)
Engine type:Single cylinder, four-stroke
Torque:64.00 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 6000 RPM
Compression:11.8:1
Bore x stroke:102.0 x 80.0 mm (4.0 x 3.1 inches)
Fuel system:Carburettor. Keihin EMS with EPT (Electr. Power Throttle)
Fuel control:OHC
Ignition:Keihin
Lubrication system:Semi-dry-sump lubrication with 2 Eaton pumps
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:APTC Wet multi-disc clutch, operated hydraulically
Exhaust system:2-cell stainless steel
Chassis, suspension, brakes and wheels
Frame type:Chromium-Molybdenum trellis frame, powder coated. Self-supporting plastic tank as subframe.
Rake (fork angle):27.0
Front suspension:WP USD, 48 mm
Front suspension travel:250 mm (9.8 inches)
Rear suspension:WP mono shock with Pro Lever Linkage
Rear suspension travel:250 mm (9.8 inches)
Front tyre dimensions:90/90-21
Rear tyre dimensions:140/80-18
Front brakes:Single disc. Brembo two piston, floating caliper
Front brakes diameter:300 mm (11.8 inches)
Rear brakes:Single disc. Brembo single piston, floating caliper
Rear brakes diameter:240 mm (9.4 inches)
Physical measures and capacities
Dry weight:138.5 kg (305.3 pounds)
Seat height:910 mm (35.8 inches) If adjustable, lowest setting.
Ground clearance:300 mm (11.8 inches)
Wheelbase:1,498 mm (59.0 inches)
Fuel capacity:12.00 litres (3.17 gallons)
Other specifications
Starter:Electric
Color options:Orange
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 09 KTM 690 Enduro discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2009 KTM 690 Enduro discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.

If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.


Rating sample for this KTM bike
Engine performance for the 2009 KTM 690 Enduro:


(86.5 out of 100)

Click here for complete rating. You can also compare bikes.
