13 KTM 350 XC-F specificationsKTM 350 XC-F 2013

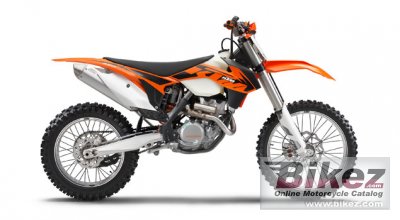

2013 KTM 350 XC-F photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2013 KTM 350 XC-F image
2013 KTM 350 XC-F

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
This unique bike supplies the power and performance of a 450 combined with the handling of a 250. For 2013, the 350 XC-F engine has been scrutinized for power and performance, a completely new chassis and new bodywork for a new generation of XC.

General information
Model:KTM 350 XC-F
Year:2013
Category:Enduro / offroad
Rating:Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:349.70 ccm (21.34 cubic inches)
Engine type:Single cylinder, four-stroke
Fuel system:Injection
Ignition:Contactless controlled fully electronic ignition with digital ignition adjustment
Lubrication system:Pressure circulation lubrication with two Eaton pumps
Cooling system:Liquid
Gearbox:6-speed
Clutch:Multidisc clutch in oil bath/hydraulically activated
Driveline:5/8 x 1/4
Chassis, suspension, brakes and wheels
Frame type:Central tubular frame made from chrome molybdenum steel tubes
Rake (fork angle):26.5░
Front suspension:WP áSuspension Up Side Down 4860 MXMA CC
Front suspension travel:292 mm (11.5 inches)
Rear suspension:WP áSuspension 5018 BAVP DCC
Rear suspension travel:335 mm (13.2 inches)
Front brakes:Single disc
Front brakes diameter:260 mm (10.2 inches)
Rear brakes:Single disc
Rear brakes diameter:220 mm (8.7 inches)
Physical measures and capacities
Dry weight:107.8 kg (237.7 pounds)
Seat height:992 mm (39.1 inches) If adjustable, lowest setting.
Ground clearance:376 mm (14.8 inches)
Wheelbase:1,495 mm (58.9 inches)
Fuel capacity:9.00 litres (2.38 gallons)
Other specifications
Starter:Electric & kick
Color options:Orange/gray
