KTM 350 F EXC Factory 2011

2011 KTM 350 F EXC Factory specifications, pictures, reviews and rating

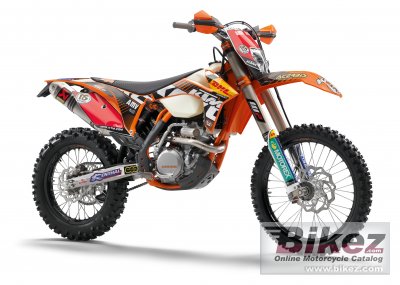

Picture credits - KTM. Click to submit more pictures.

2011 KTM 350 F EXC Factory

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

KTM's profilation of this bike

Launching the revolutionary, brand new 350 EXC-F Factory, KTM puts down a new milestone in the Enduro World Championship in 2011. The newly developed factory bike claims no less than to be the most sophisticated and best four stroke racing Enduro ever.

General information
Model:	KTM 350 F EXC Factory
Year:	2011
Category:	Enduro / offroad
Rating:	71.3 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	349.70 ccm (21.34 cubic inches)
Engine type:	Single cylinder, four-stroke
Compression:	13.5:1
Bore x stroke:	88.0 x 57.5 mm (3.5 x 2.3 inches)
Fuel system:	Injection. EFI
Fuel control:	DOHC
Lubrication system:	Pressure lubrication with 2 oil pumps
Cooling system:	Liquid
Gearbox:	5-speed
Transmission type, final drive:	Chain
Clutch:	Wet multi disk clutch
Driveline:	14:50. Primary drive: 24:73.
Chassis, suspension, brakes and wheels
Frame type:	Central double-cradle-type 25CrMo4. Subframe: Aluminium.
Rake (fork angle):	26.5°
Front suspension:	WP Upside-down fork
Front suspension travel:	185 mm (7.3 inches)
Rear suspension:	WP-Monoshock with linkage
Rear suspension travel:	185 mm (7.3 inches)
Front tyre:	80/100-21
Rear tyre:	110/90-19
Front brakes:	Single disc
Front brakes diameter:	260 mm (10.2 inches)
Rear brakes:	Single disc
Rear brakes diameter:	220 mm (8.7 inches)
Wheels:	1.60 x 21in., 2.15 x 19in. Excel
Physical measures and capacities
Dry weight:	103.0 kg (227.1 pounds)
Seat height:	992 mm (39.1 inches) If adjustable, lowest setting.
Ground clearance:	375 mm (14.8 inches)
Wheelbase:	1,495 mm (58.9 inches)
Fuel capacity:	7.50 litres (1.98 gallons)
Other specifications
Color options:	Orange/blue
Further information
Parts and accessories	Check out parts and accessories from our other partners.
Ask questions	Join the 11 KTM 350 F EXC Factory discussion group.
Insurance, loans, tests	Check out approximate insurance costs here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes	List related bikes for comparison of specs

General information

Model:

KTM 350 F EXC Factory

Year:

2011

Category:

Enduro / offroad

Rating:

71.3 out of 100. Show full rating and compare with other bikes

Engine and transmission

Displacement:

349.70 ccm (21.34 cubic inches)

Engine type:

Single cylinder, four-stroke

Compression:

13.5:1

Bore x stroke:

88.0 x 57.5 mm (3.5 x 2.3 inches)

Fuel system:

Injection. EFI

Fuel control:

DOHC

Lubrication system:

Pressure lubrication with 2 oil pumps

Cooling system:

Liquid

Gearbox:

5-speed

Transmission type,
final drive:

Chain

Clutch:

Wet multi disk clutch

Driveline:

14:50. Primary drive: 24:73.

Chassis, suspension, brakes and wheels

Frame type:

Central double-cradle-type 25CrMo4. Subframe: Aluminium.

Rake (fork angle):

26.5°

Front suspension:

WP Upside-down fork

Front suspension travel:

185 mm (7.3 inches)

Rear suspension:

WP-Monoshock with linkage

Rear suspension travel:

185 mm (7.3 inches)

Front tyre:

80/100-21

Rear tyre:

110/90-19

Front brakes:

Single disc

Front brakes diameter:

260 mm (10.2 inches)

Rear brakes:

Single disc

Rear brakes diameter:

220 mm (8.7 inches)

Wheels:

1.60 x 21in., 2.15 x 19in. Excel

Physical measures and capacities

Dry weight:

103.0 kg (227.1 pounds)

Seat height:

992 mm (39.1 inches) If adjustable, lowest setting.

Ground clearance:

375 mm (14.8 inches)

Wheelbase:

1,495 mm (58.9 inches)

Fuel capacity:

7.50 litres (1.98 gallons)

Other specifications

Color options:

Orange/blue

Further information

Parts and accessories

Check out parts and accessories from our other partners.

Ask questions

Join the 11 KTM 350 F EXC Factory discussion group.

Insurance, loans, tests

Check out approximate insurance costs here. Search the web for dealers, loan costs, tests, customizing, etc.

Related bikes

List related bikes for comparison of specs

Buying a bike starts at Bikez

Get a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc.

Show any 2011 KTM 350 F EXC Factory for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free.

You are also welcome to read and submit motorcycle reviews.

Rating sample for this KTM bike

Fun-factor for the 2011 KTM 350 F EXC Factory:

Vote scale

(82.4 out of 100)

Click here for complete rating. You can also compare bikes.
