| KTM's profilation of this bike |
| For the 2012 season, the 250 XCF-W features revolutionary new chassis, new bodywork, more power and EFI. New DOHC EFI engine tuned for enduro riding. New cylinder head with optimized intake ports. |
| General information |
|---|

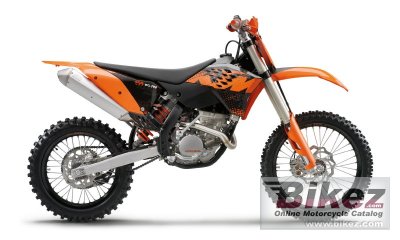

| Model: | KTM 250 XCF-W Six Days | | Year: | 2012 | | Category: | Enduro / offroad | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 248.60 ccm (15.17 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Compression: | 13.2:1 | | Bore x stroke: | 76.0 x 54.8 mm (3.0 x 2.2 inches) | | Fuel system: | Injection. EFI | | Ignition: | Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan | | Lubrication system: | Pressure circulation lubrication with two rotary pumps | | Cooling system: | Liquid | | Gearbox: | 6-speed | Transmission type,
final drive: | Chain | | Clutch: | Multidisc clutch in oil bath/hydraulically activated | | Driveline: | Primary transmission 22:68. Final drive 13:50. | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Central tube frame made of chrome molybdenum steel tubing | | Rake (fork angle): | 26.5° | | Front suspension travel: | 300 mm (11.8 inches) | | Rear suspension travel: | 335 mm (13.2 inches) | | Front tyre dimensions: | 80/100-21 | | Rear tyre dimensions: | 100/90-19 | | Front brakes: | Single disc | | Front brakes diameter: | 260 mm (10.2 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 220 mm (8.7 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 106.0 kg (233.7 pounds) | | Seat height: | 970 mm (38.2 inches) If adjustable, lowest setting. | | Ground clearance: | 345 mm (13.6 inches) | | Wheelbase: | 1,482 mm (58.3 inches) | | Other specifications |
|---|
| Starter: | Electric & kick | | Color options: | Orange/black/white | | Further information |
|---|
