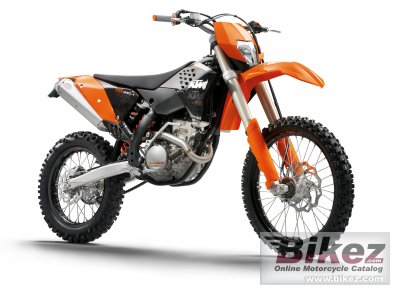

2009 KTM 250 EXC-F specifications, pictures, reviews and rating
Picture credits - KTM. Click to submit more pictures.
|KTM's profilation of this bike|
|The most modern four-valve technology ensures massive thrust from the bottom of the range up into the highest speed ranges. Light, extremely agile and a true muscleman in the small class.|
|Model:||KTM 250 EXC-F|
|Category:||Enduro / offroad|
|Rating:||49.7 out of 100. Show full rating and compare with other bikes|
|Engine and transmission|
|Displacement:||248.60 ccm (15.17 cubic inches)|
|Engine type:||Single cylinder, four-stroke|
|Bore x stroke:||76.0 x 54.8 mm (3.0 x 2.2 inches)|
|Valves per cylinder:||4|
|Fuel system:||Carburettor. Keihin FCR MX 39|
|Lubrication system:||Pressure lubrication with 2 oil pumps|
|Clutch:||Wet multi-disc clutch, operated hydraulically|
|Chassis, suspension, brakes and wheels|
|Frame type:||Central double-cradle-type 25CrMo4 steel|
|Rake (fork angle):||26.5°|
|Front suspension:||WP USD|
|Front suspension travel:||300 mm (11.8 inches)|
|Rear suspension:||WP PDS shock absorber|
|Rear suspension travel:||335 mm (13.2 inches)|
|Front tyre dimensions:||90/90-21|
|Rear tyre dimensions:||120/90-18|
|Front brakes:||Single disc|
|Front brakes diameter:||260 mm (10.2 inches)|
|Rear brakes:||Single disc|
|Rear brakes diameter:||220 mm (8.7 inches)|
|Physical measures and capacities|
|Dry weight:||105.7 kg (233.0 pounds)|
|Seat height:||985 mm (38.8 inches) If adjustable, lowest setting.|
|Ground clearance:||380 mm (15.0 inches)|
|Wheelbase:||1,475 mm (58.1 inches)|
|Fuel capacity:||9.20 litres (2.43 gallons)|
|Starter:||Electric & kick|
