13 KTM 1190 Adventure specificationsKTM 1190 Adventure 2013

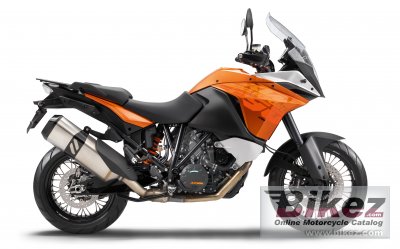

2013 KTM 1190 Adventure photo
Picture credits - KTM. Click to submit more pictures.
   Show big 2013 KTM 1190 Adventure imageShow more 2013 KTM 1190 Adventure images
2013 KTM 1190 Adventure

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



KTM's profilation of this bike
KTM sets the new standard in the travel segment with the new Adventure generation. It´s over a decade now since the first Adventure motorcycle from Mattighofen appeared on the market – with the genes of the KTM that won the Dakar Rally eleven times in succession. The consistent transfer of expertise from racing into series production was the guarantee for the KTM Adventures always being ahead of the rest of the pack.

General information
Model:KTM 1190 Adventure
Year:2013
Category:Allround
Rating:69.2 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:1195.00 ccm (72.92 cubic inches)
Engine type:Twin, four-stroke
Power:147.51 HP (107.7 kW))
Bore x stroke:105.0 x 69.0 mm (4.1 x 2.7 inches)
Fuel system:Injection
Ignition:Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication system:Forced oil lubrication with 3 rotor pumps
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:PASC anti-hopping clutch/ hydraulically operated
Driveline:5/8  x  5/16 ¯ X Ring. Primary drive: 40:76.
Chassis, suspension, brakes and wheels
Frame type:Tubular space frame made from chrome molybdenum steel, powder-coated
Rake (fork angle):26.0°
Front suspension:WP  Suspension Up Side Down
Front suspension travel:190 mm (7.5 inches)
Rear suspension:WP  Suspension monoshock
Rear suspension travel:190 mm (7.5 inches)
Front brakes:Double disc. Four-piston calipers. Radially mounted.
Front brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc. Two-piston calipers.
Rear brakes diameter:267 mm (10.5 inches)
Physical measures and capacities
Dry weight:212.0 kg (467.4 pounds)
Power/weight ratio:0.6958 HP/kg
Seat height:860 mm (33.9 inches) If adjustable, lowest setting.
Ground clearance:220 mm (8.7 inches)
Wheelbase:1,560 mm (61.4 inches)
Fuel capacity:23.00 litres (6.08 gallons)
Other specifications
Starter:Electric
Color options:Grey/white/orange, grey/orange
Comments:Small windscreen
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 13 KTM 1190 Adventure discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Rate motorcycles you know

Rate motorcycles you know and help your fellow riders to find the bike that is right for them. Bikez has the most users and the most extensive motorcycle rating on the net. It includes reliability, design, engine performance, accident risk, repair cost, offroad capabilities, racing track capabilities and touring capabilities.

The ratings are also used to rank the 100 most popular MC models each year since 1990. The lists are adjusted weekly as new ratings are added. You can check out the rating of the 2013 KTM 1190 Adventure and compare it to other bikes here.


Rating sample for this KTM bike
Engine performance for the 2013 KTM 1190 Adventure:


(82.0 out of 100)

Click here for complete rating. You can also compare bikes.
