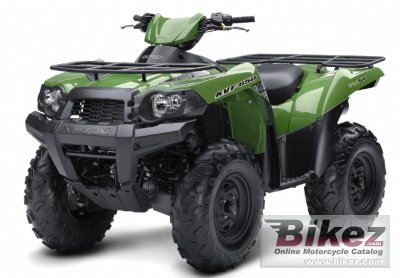

| Kawasaki's profilation of this bike |
| For negotiating hills and slippery surfaces, the limited slip differential is a real benefit by supplying power to the wheel that is able to provide the most traction. |
| General information |
|---|
| Model: | Kawasaki KVF650 4x4 | | Year: | 2012 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 633.00 ccm (38.63 cubic inches) | | Engine type: | V2, four-stroke | | Power: | 41.44 HP (30.2 kW)) @ 6500 RPM | | Torque: | 52.10 Nm (5.3 kgf-m or 38.4 ft.lbs) @ 4000 RPM | | Compression: | 9.9:1 | | Bore x stroke: | 80.0 x 63.0 mm (3.1 x 2.5 inches) | | Valves per cylinder: | 4 | | Fuel system: | Carburettor. (2) Keihin CVKR-D32 | | Fuel control: | SOHC | | Ignition: | DC-CDI | | Cooling system: | Liquid | Transmission type,
final drive: | Shaft drive (cardan) | | Driveline: | Selectable four-wheel drive with variable front differential control, shaft | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double cradle, high-tensile tubular steel | | Rake (fork angle): | 4.5° | | Trail: | 15 mm (0.6 inches) | | Front suspension: | MacPherson strut | | Rear suspension: | Swingarm with adjustable shock absorber | | Front tyre dimensions: | 25/8-12 | | Rear tyre dimensions: | 25/10-12 | | Front brakes: | Double disc | | Front brakes diameter: | 200 mm (7.9 inches) | | Rear brakes: | Sealed multidisc | | Physical measures and capacities |
|---|
| Dry weight: | 273.0 kg (601.9 pounds) | | Weight incl. oil, gas, etc: | 294.0 kg (648.2 pounds) | | Power/weight ratio: | 0.1518 HP/kg | | Seat height: | 904 mm (35.6 inches) If adjustable, lowest setting. | | Overall height: | 1,164 mm (45.8 inches) | | Overall length: | 2,185 mm (86.0 inches) | | Overall width: | 1,212 mm (47.7 inches) | | Ground clearance: | 244 mm (9.6 inches) | | Wheelbase: | 1,285 mm (50.6 inches) | | Fuel capacity: | 18.00 litres (4.76 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Instruments: | Digital speedometer, odometer, dual trip meters, clock, hour meter, fuel gauge, 2x4 / 4x4 indicator light, neutral indicator light, reverse indicator light, low fuel warning light, low oil warning light | | Light: | (2) 40W headlights, 5W taillight, 21W stoplight | | Factory warranty: | 12 Months | | Color options: | Scout Green, Adventure Blue | | Further information |
|---|
