| General information |
|---|

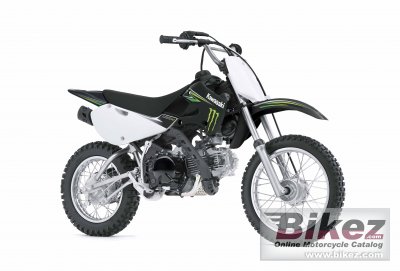

| Model: | Kawasaki KLX 110 Monster Energy |
| Year: | 2009 |
| Category: | Enduro / offroad |
| Rating: | 74.5 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 111.00 ccm (6.77 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Compression: | 9.5:1 |
| Bore x stroke: | 53.0 x 50.6 mm (2.1 x 2.0 inches) |
| Fuel system: | Carburettor. Keihin PB18 |
| Fuel control: | SOHC |
| Ignition: | CDI |
| Cooling system: | Air |
| Gearbox: | 3-speed |
| Physical measures |
|---|
| Weight incl. oil, gas, etc: | 67.9 kg (149.8 pounds) |
| Seat height: | 650 mm (25.6 inches) If adjustable, lowest setting. |
| Overall length: | 1,554 mm (61.2 inches) |
| Ground clearance: | 191 mm (7.5 inches) |
| Wheelbase: | 1,064 mm (41.9 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Backbone frame, high-tensile steel |
| Front suspension: | 30mm hydraulic telescopic fork / 4.3 in. |
| Rear suspension: | Swingarm with single hydraulic shock / 4.2 in. |
| Front tyre dimensions: | 70/14-19 |
| Rear tyre dimensions: | 90/12-16 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Expanding brake (drum brake) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 3.78 litres (1.00 gallons) |
| Color options: | Ebony |
