| Jincheng's profilation of this bike |
| Red, black |
| General information |
|---|

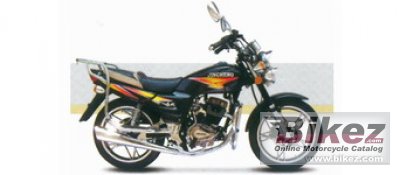

| Model: | Jincheng JC125-15A |
| Year: | 2012 |
| Category: | Allround |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 124.10 ccm (7.57 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 10.10 HP (7.4 kW)) @ 8500 RPM |
| Torque: | 8.50 Nm (0.9 kgf-m or 6.3 ft.lbs) @ 8000 RPM |
| Top speed: | 85.0 km/h (52.8 mph) |
| Compression: | 9.0:1 |
| Bore x stroke: | 56.5 x 56.5 mm (2.2 x 2.2 inches) |
| Fuel system: | Carburettor |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Fuel consumption: | 2.10 litres/100 km (47.6 km/l or 112.01 mpg) |
| Greenhouse gases: | 48.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels |
|---|
| Front tyre: | 2.75-18 |
| Rear tyre: | 90/90-PR18 |
| Front brakes: | Single disc |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 117.0 kg (257.9 pounds) |
| Power/weight ratio: | 0.0863 HP/kg |
| Overall height: | 1,100 mm (43.3 inches) |
| Overall length: | 2,050 mm (80.7 inches) |
| Overall width: | 750 mm (29.5 inches) |
| Ground clearance: | 220 mm (8.7 inches) |
| Wheelbase: | 1,340 mm (52.8 inches) |
| Fuel capacity: | 12.50 litres (3.30 gallons) |
| Other specifications |
|---|
| Starter: | Electric & kick |
| Comments: | Chinese bike |
