Hyosung TE450S 20132013 Hyosung TE450S specifications, pictures, reviews and rating |

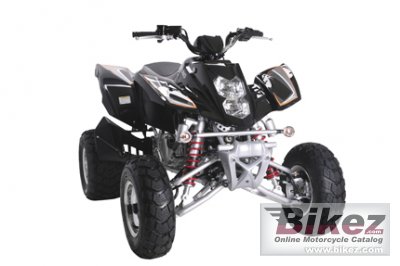

![]() Picture credits - Hyosung. Click to submit more pictures.
|
|
Hyosung's profilation of this bike |
The TE450S is Hyosung´s high-performance sports ATV, featuring fully adjustable suspension, a high-tensile frame, aluminum swingarm, alloy wheels, disc brakes front and rear, and a detachable sub-frame. |
General information | |
---|---|
Model: | Hyosung TE450S |
Year: | 2013 |
Category: | ATV |
Rating: | Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Price as new (MSRP): | US$ 4999. Prices depend on country, taxes, accessories, etc. |
Engine and transmission | |
Displacement: | 449.00 ccm (27.40 cubic inches) |
Engine type: | Single cylinder, four-stroke |
Power: | 52.00 HP (38.0 kW)) @ 8500 RPM |
Torque: | 47.64 Nm (4.9 kgf-m or 35.1 ft.lbs) @ 7000 RPM |
Compression: | 12.0:1 |
Bore x stroke: | 96.0 x 62.0 mm (3.8 x 2.4 inches) |
Valves per cylinder: | 4 |
Fuel system: | Carburettor |
Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
Lubrication system: | Semi dry sump |
Cooling system: | Liquid |
Gearbox: | 5-speed |
Transmission type, final drive: | Chain |
Clutch: | Wet, Multiplate |
Driveline: | Chain 520, With reverse. |
Chassis, suspension, brakes and wheels | |
Frame type: | High-tensile frame |
Front suspension: | Independent double A-arm, 220mm wheel travel fully adjustable piggyback shock absorber |
Rear suspension: | Aluminum alloy swing arm, 240mm wheel travel, Linkage type fully adjustable shock absorber |
Front tyre: | 21/7-10 |
Rear tyre: | 20/11-9 |
Front brakes: | Double disc |
Front brakes diameter: | 170 mm (6.7 inches) |
Rear brakes: | Single disc |
Rear brakes diameter: | 240 mm (9.4 inches) |
Physical measures and capacities | |
Dry weight: | 211.8 kg (467.0 pounds) |
Power/weight ratio: | 0.2455 HP/kg |
Seat height: | 35 mm (1.4 inches) If adjustable, lowest setting. |
Ground clearance: | 11 mm (0.4 inches) |
Wheelbase: | 50 mm (2.0 inches) |
Fuel capacity: | 7.87 litres (2.08 gallons) |
Other specifications | |
Color options: | Red, black |
Instruments: | Digital |
Factory warranty: | 2 years limited |
Comments: | Made in Korea. |
