05 Husqvarna TE 610 e specificationsHusqvarna TE 610 e 2005

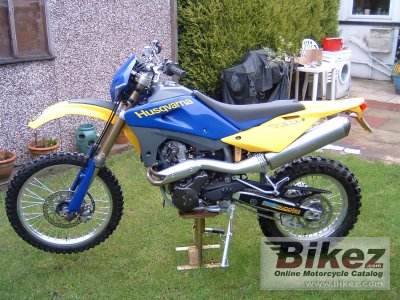

2005 Husqvarna TE 610 e photo
Picture submitted by anonymous user.. Click to submit more pictures.
   Show big 2005 Husqvarna TE 610 e image
2005 Husqvarna TE 610 e

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



General information
Model:Husqvarna TE 610 e
Year:2005
Category:Enduro / offroad
Rating:68.2 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:577.00 ccm (35.21 cubic inches)
Engine type:Single cylinder, four-stroke
Compression:12.5:1
Bore x stroke:98.0 x 76.5 mm (3.9 x 3.0 inches)
Valves per cylinder:4
Fuel system:Carburettor. Dell´Ortho PHM 40 mm
Ignition:Analogic
Lubrication system:Dry sump with two oil pump rotor and cartridge filter
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Wet, multiplate type, hydraulic
Chassis, suspension, brakes and wheels
Frame type:Single tube cradl, rear frame in light alloy
Front suspension:Upside-down telescopic hydraulic fork with advanced axle
Front suspension travel:300 mm (11.8 inches)
Rear suspension:Sachs progressive ´soft damp´, single shock
Rear suspension travel:320 mm (12.6 inches)
Front tyre dimensions:90/90-18
Rear tyre dimensions:140/80-18
Front brakes:Single disc
Front brakes diameter:260 mm (10.2 inches)
Rear brakes:Single disc
Rear brakes diameter:220 mm (8.7 inches)
Physical measures and capacities
Weight incl. oil, gas, etc:146.0 kg (321.9 pounds)
Seat height:890 mm (35.0 inches) If adjustable, lowest setting.
Overall height:1,290 mm (50.8 inches)
Overall length:2,215 mm (87.2 inches)
Overall width:820 mm (32.3 inches)
Ground clearance:340 mm (13.4 inches)
Wheelbase:1,480 mm (58.3 inches)
Fuel capacity:9.10 litres (2.40 gallons)
Other specifications
Starter:Electric
Color options:Yellow/blue
