12 Husqvarna TE511 specificationsHusqvarna TE511 2012

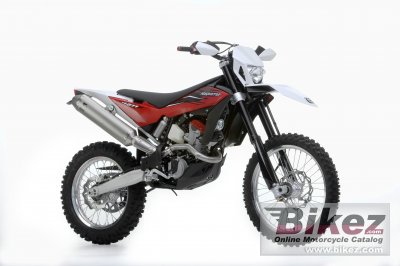

2012 Husqvarna TE511 photo
Picture credits - Husqvarna. Click to submit more pictures.
   Show big 2012 Husqvarna TE511 imageShow more 2012 Husqvarna TE511 images
2012 Husqvarna TE511

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Husqvarna's profilation of this bike
The largest of Husqvarna’s street-legal dual-purpose enduro bikes, the TE511 motor is based on the 449 powerplant, bored out an extra 3mm for bigger torque that comes on smooth and in no short supply.

General information
Model:Husqvarna TE511
Year:2012
Category:Enduro / offroad
Rating:77.3 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 8999. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:477.50 ccm (29.14 cubic inches)
Engine type:Single cylinder, four-stroke
Engine details:Titanium valves in radial arrangement
Bore x stroke:101.0 x 59.6 mm (4.0 x 2.3 inches)
Valves per cylinder:4
Fuel system:Injection. Keihin D46 throttle body
Fuel control:DOHC
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Multi plate, hydraulic operation
Driveline:Constant mesh
Chassis, suspension, brakes and wheels
Frame type:Double beam, double cradle and high resistance chromoly steel frame (round and elliptical). Light alloy sub frame.
Rake (fork angle):25.8°
Trail:101 mm (4.0 inches)
Front suspension:48mm Kayaba USD
Rear suspension:Kayaba single shock with remote reservoir, adjustable spring preload, compression (high and low speeed) and rebound damping
Front tyre dimensions:90/90-21
Rear tyre dimensions:140/90-18
Front brakes:Single disc. Bremo
Front brakes diameter:260 mm (10.2 inches)
Rear brakes:Single disc
Rear brakes diameter:240 mm (9.4 inches)
Physical measures and capacities
Dry weight:113.0 kg (249.1 pounds)
Seat height:958 mm (37.7 inches) If adjustable, lowest setting.
Overall length:2,280 mm (89.8 inches)
Overall width:820 mm (32.3 inches)
Ground clearance:335 mm (13.2 inches)
Wheelbase:1,490 mm (58.7 inches)
Fuel capacity:9.50 litres (2.51 gallons)
Oil capacity:1.00 litres (0.07 quarts)
Other specifications
Starter:Electric
Factory warranty:2 Years
Color options:Red/White
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 12 Husqvarna TE511 discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Free motorcycle classifieds

Click here to sell a used 2012 Husqvarna TE511 or advertise any other MC for sale. You can list all available Husqvarna TE511 bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world.

You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc.


Rating sample for this Husqvarna bike
Value for money for the 2012 Husqvarna TE511:


(81.0 out of 100)

Click here for complete rating. You can also compare bikes.
