| General information |
|---|

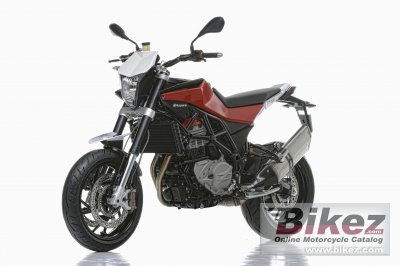

| Model: | Husqvarna Nuda 900R |
| Year: | 2013 |
| Category: | Super motard |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 898.00 ccm (54.80 cubic inches) |
| Engine type: | Twin, four-stroke |
| Engine details: | Modified BMW F 800 R engine |
| Power: | 103.26 HP (75.4 kW)) @ 8500 RPM |
| Torque: | 100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 7000 RPM |
| Compression: | 13.0:1 |
| Bore x stroke: | 84.0 x 81.0 mm (3.3 x 3.2 inches) |
| Fuel system: | Injection. Electronic intake pipe injection / digital engine management, two engine mappings (switchable by customer) |
| Lubrication system: | Dry sump |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet, multi plate, cable operated |
| Driveline: | 6 speed, chain final drive |
| Emission details: | Closed-loop 3-way catalytic converter, emission standard EU3 Performance |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular steel trellis main frame and rear frame, removable passenger footpegs |
| Rake (fork angle): | 24.5° |
| Trail: | 101 mm (4.0 inches) |
| Front suspension: | 48mm USD Sachs, fully adjustable |
| Rear suspension: | Ohlins monoshock |
| Front tyre dimensions: | 120/70-17 |
| Rear tyre dimensions: | 180/55-17 |
| Front brakes: | Double disc. Radially mounted. |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Floating disc. |
| Rear brakes diameter: | 265 mm (10.4 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 174.0 kg (383.6 pounds) |
| Weight incl. oil, gas, etc: | 195.0 kg (429.9 pounds) |
| Power/weight ratio: | 0.5934 HP/kg |
| Seat height: | 875 mm (34.4 inches) If adjustable, lowest setting. |
| Overall height: | 1,225 mm (48.2 inches) |
| Overall length: | 2,190 mm (86.2 inches) |
| Overall width: | 895 mm (35.2 inches) |
| Wheelbase: | 1,495 mm (58.9 inches) |
| Fuel capacity: | 13.00 litres (3.43 gallons) |
| Reserve fuel capacity: | 3.00 litres (0.79 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Electrical: | 14 Ah, maintenance free battery. |
| Factory warranty: | 2 Years, unlimited milage |
| Color options: | Red/white/black |
