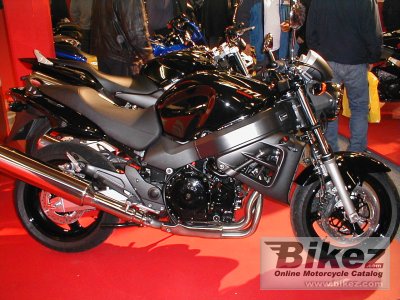

Picture credits - Harald Holm. Click to submit more pictures.

2002 Honda X-Eleven

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

General information
Model:	Honda X-Eleven
Year:	2002
Category:	Naked bike
Rating:	77.5 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	1137.00 ccm (69.38 cubic inches)
Engine type:	In-line four, four-stroke
Power:	137.00 HP (100.0 kW)) @ 9000 RPM
Torque:	113.00 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 7000 RPM
Compression:	11.0:1
Bore x stroke:	79.0 x 58.0 mm (3.1 x 2.3 inches)
Valves per cylinder:	4
Fuel system:	Injection
Gearbox:	5-speed
Transmission type, final drive:	Chain
Chassis, suspension, brakes and wheels
Front wheel travel:	120 mm (4.7 inches)
Rear wheel travel:	120 mm (4.7 inches)
Front tyre:	120/70-ZR17 58W
Rear tyre:	180/55-ZR17 73W
Front brakes:	Dual disc
Front brakes diameter:	310 mm (12.2 inches)
Rear brakes:	Single disc
Rear brakes diameter:	256 mm (10.1 inches)
Physical measures and capacities
Dry weight:	222.0 kg (489.4 pounds)
Power/weight ratio:	0.6171 HP/kg
Seat height:	795 mm (31.3 inches) If adjustable, lowest setting.
Overall height:	1,115 mm (43.9 inches)
Overall length:	2,145 mm (84.4 inches)
Overall width:	750 mm (29.5 inches)
Ground clearance:	140 mm (5.5 inches)
Wheelbase:	1,500 mm (59.1 inches)
Fuel capacity:	22.00 litres (5.81 gallons)
Reserve fuel capacity:	4.00 litres (1.06 gallons)
