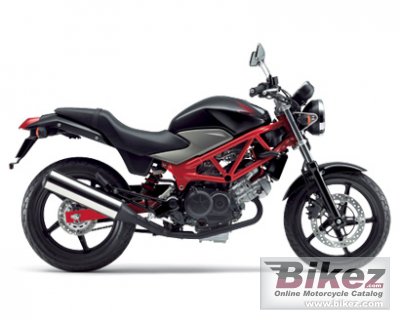

| Honda's profilation of this bike |
| Black/red |
| General information |
|---|
| Model: | Honda VTR B-Style | | Year: | 2011 | | Category: | Naked bike | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 249.00 ccm (15.19 cubic inches) | | Engine type: | V2, four-stroke | | Engine details: | MC15E engine | | Power: | 29.50 HP (21.5 kW)) @ 10500 RPM | | Torque: | 22.00 Nm (2.2 kgf-m or 16.2 ft.lbs) @ 8500 RPM | | Compression: | 11.0:1 | | Bore x stroke: | 60.0 x 44.1 mm (2.4 x 1.7 inches) | | Fuel system: | Injection. Electronic fuel injection (PGM-FI) | | Fuel control: | DOHC | | Ignition: | Full transistor type | | Gearbox: | 5-speed | Transmission type,
final drive: | Chain | | Clutch: | Wet multi-plate coil spring | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Diamond | | Rake (fork angle): | 25.0° | | Trail: | 96 mm (3.8 inches) | | Front suspension: | Telescopic fork | | Rear suspension: | Swing arm | | Front tyre dimensions: | 110/70-17M | | Rear tyre dimensions: | 140/70-17M | | Front brakes: | Single disc. Hydraulic | | Rear brakes: | Single disc. Hydraulic | | Physical measures and capacities |
|---|
| Dry weight: | 161.0 kg (354.9 pounds) | | Weight incl. oil, gas, etc: | 174.0 kg (383.6 pounds) | | Power/weight ratio: | 0.1832 HP/kg | | Seat height: | 760 mm (29.9 inches) If adjustable, lowest setting. | | Overall height: | 1,055 mm (41.5 inches) | | Overall length: | 2,080 mm (81.9 inches) | | Overall width: | 725 mm (28.5 inches) | | Ground clearance: | 155 mm (6.1 inches) | | Wheelbase: | 1,405 mm (55.3 inches) | | Fuel capacity: | 12.00 litres (3.17 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Seat: | 2 person seat | | Comments: | Sold in Japan. | | Further information |
|---|
