| General information |
|---|

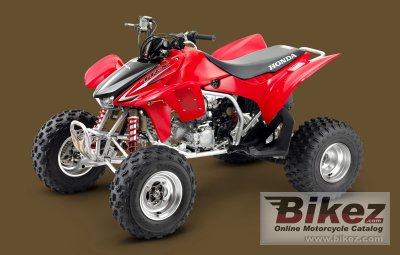

| Model: | Honda TRX450R |
| Year: | 2011 |
| Category: | ATV |
| Rating: | 70.7 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 7499. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 450.00 ccm (27.46 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 12.0:1 |
| Bore x stroke: | 96.0 x 62.0 mm (3.8 x 2.4 inches) |
| Fuel system: | Carburettor. Keihin 40mm flat slide carburetor with throttle position sensor (TPS) |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | CD with electronic advance |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Manual |
| Driveline: | O-ring-sealed chain |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independent double-wishbone with Showa shocks, featuring adjustable spring preload, rebound and compression damping |
| Front wheel travel: | 213 mm (8.4 inches) |
| Rear suspension: | Pro-Link with single Showa shock featuring adjustable spring preload, rebound and compression damping |
| Rear wheel travel: | 236 mm (9.3 inches) |
| Front tyre: | 22/7-10 |
| Rear tyre: | 20/10-9 |
| Front brakes: | Double disc |
| Front brakes diameter: | 174 mm (6.9 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 190 mm (7.5 inches) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 172.8 kg (381.0 pounds) |
| Seat height: | 833 mm (32.8 inches) If adjustable, lowest setting. |
| Overall height: | 1,100 mm (43.3 inches) |
| Overall length: | 1,862 mm (73.3 inches) |
| Overall width: | 1,176 mm (46.3 inches) |
| Ground clearance: | 112 mm (4.4 inches) |
| Wheelbase: | 1,275 mm (50.2 inches) |
| Fuel capacity: | 10.22 litres (2.70 gallons) |
| Other specifications |
|---|
| Color options: | Red, White, White with Orange Flame |
| Starter: | Kick |
| Factory warranty: | 1 year. Transferable, unlimited mileage limited warranty. |
| Comments: | Model ID: TRX450R |
